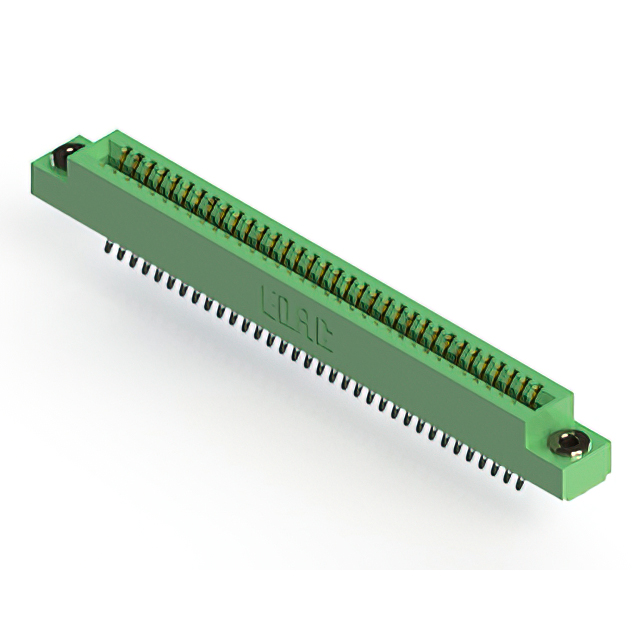

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
341-068-555-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-068-555-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-068 Series
| Part | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Card Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish | Mounting Type | Number of Positions | Material - Insulation | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Gender | Read Out | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | 0.116 in | 2.95 mm | |
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder Eyelet(s) | 0.116 in | 2.95 mm | Card Extender |
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Board Edge Straddle Mount | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | 0.116 in | 2.95 mm | Card Extender |
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | 0.128 " | 3.25 mm | |
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | 0.156 in | 3.96 mm | |
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Board Edge Straddle Mount | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | Card Extender | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | -40 °C | 105 ░C | Green | 34 | 2 | Gold | Through Hole | 68 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Female | Dual | Solder | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
341-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
