F6Q0.75BK50

Active

Techflex

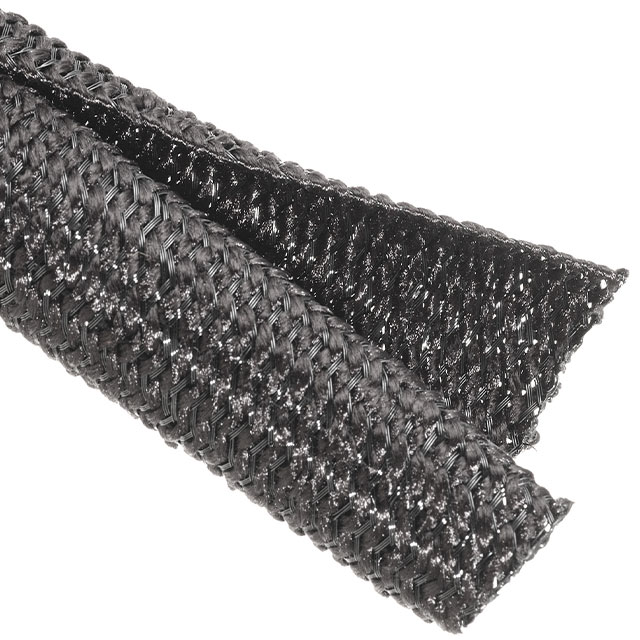

SELF WRAP 3/4" X 50' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 3/4" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6Q0.75BK50

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	0.75 in
Features	Clean Cut, Noise Reduction
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.04 in
Wall Thickness	1.02 mm

Part	Length	Length [x]	Material	Color	Wall Thickness	Wall Thickness	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Type Attributes	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
Techflex F6Q0.75BK50	15.24 m	50 ft	Polyethylene Terephthalate (PET) Halogen Free	Black	0.04 in	1.02 mm	Clean Cut Noise Reduction	19.05 mm	0.75 in	Self Wrap	Split Flexible Tube	Abrasion and Cut Resistant	125 °C	-30 ░C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 50.00' (15.24m) Black
