5M2210ZF256C5N

Active

Altera

IC CPLD 1700MC 7NS 256FBGA

Search across all available documentation for this part.

Active

Altera

IC CPLD 1700MC 7NS 256FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	5M2210ZF256C5N

Delay Time tpd(1) Max [Max]	7 ns
Mounting Type	Surface Mount
Number of I/O	203
Number of Logic Elements/Blocks	2210
Number of Macrocells	1700
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

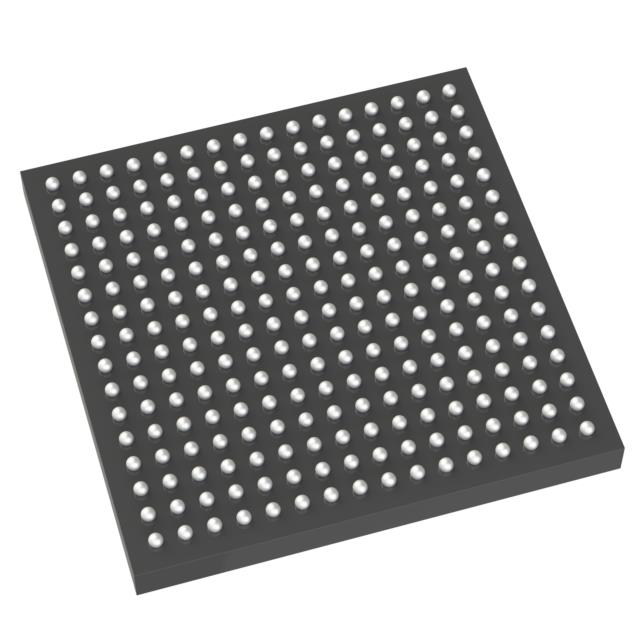

Package / Case	256-LBGA
Programmable Type	In System Programmable
Supplier Device Package	256-FBGA (17x17)
Voltage Supply - Internal [Max]	1.89 V
Voltage Supply - Internal [Min]	1.71 V

Part	Programmable Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Logic Elements/Blocks	Delay Time tpd(1) Max [Max]	Number of I/O	Supplier Device Package
Altera 5M2210ZF324I5	In System Programmable	324-LBGA	Surface Mount	100 °C	-40 C	1700	1.71 V	1.89 V	2210	7 ns	271	324-FBGA (19x19)
Altera 5M2210ZF256C5N	In System Programmable	256-LBGA	Surface Mount	85 °C	0 °C	1700	1.71 V	1.89 V	2210	7 ns	203	256-FBGA (17x17)
Altera 5M2210ZF324C4N	In System Programmable	324-LBGA	Surface Mount	85 °C	0 °C	1700	1.71 V	1.89 V	2210	7 ns	271	324-FBGA (19x19)
Altera 5M2210ZF256C4N	In System Programmable	256-LBGA	Surface Mount	85 °C	0 °C	1700	1.71 V	1.89 V	2210	7 ns	203	256-FBGA (17x17)
Altera 5M2210ZF324C5N	In System Programmable	324-LBGA	Surface Mount	85 °C	0 °C	1700	1.71 V	1.89 V	2210	7 ns	271	324-FBGA (19x19)
Altera 5M2210ZF324I5N	In System Programmable	324-LBGA	Surface Mount	100 °C	-40 C	1700	1.71 V	1.89 V	2210	7 ns	271	324-FBGA (19x19)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.09

General part information

IC CPLD 1700MC 7NS 256FBGA
