01072-226

Active

Sensata-BEI Sensors

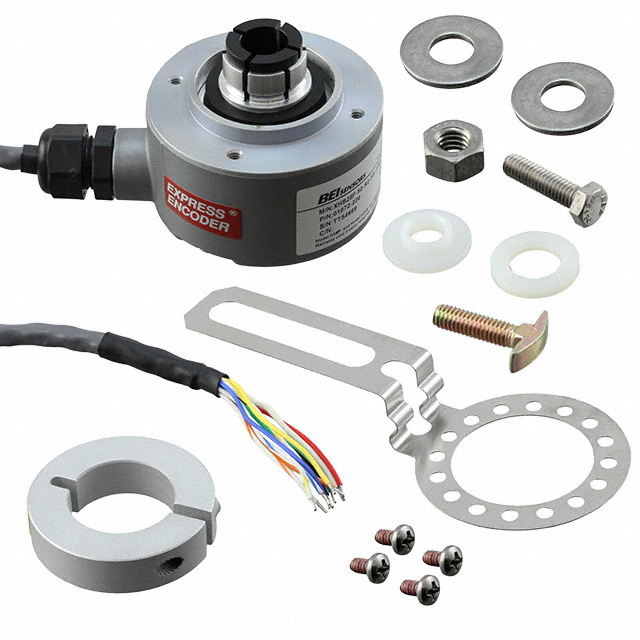

ROTARY ENCODER OPTICAL 2048PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2048PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01072-226

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2048
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Cable
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

Part	Mounting Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Pulses per Revolution	Actuator Type	Encoder Type	Orientation	Rotational Life (Cycles Min) [Min]	Rotational Life (Cycles Min)
Sensata-BEI Sensors 01072-273	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	1024	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-262	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	1024	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-226	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	2048	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-259	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	1024	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-305	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	1000	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-292	Chassis Mount Motors	Quadrature with Index (Incremental)	5 V	28 V	Cable	2048	Hole for Shaft	Optical	User Selectable	7.5B
Sensata-BEI Sensors 01072-288	Chassis Mount	Quadrature with Index (Incremental)	5 V	28 V	Cable	2048	Shaft	Optical	User Selectable		200M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 2048PPR
