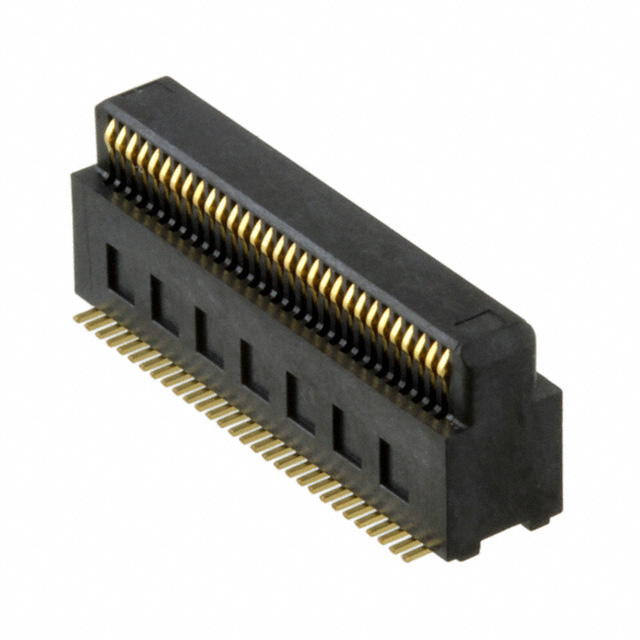

WR-60S-VFH30-N1

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-60S-VFH30-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Number of Positions	Mated Stacking Heights	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
JAE Electronics WR-60S-VFH30-N1-R1000	2	Gold	Surface Mount	6.25 mm	0.246 in	60	7 mm 8 mm 9 mm	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	0.5 mm	0.02 in
JAE Electronics WR-60S-VFH30-N1	2	Gold	Surface Mount	6.25 mm	0.246 in	60	7 mm 8 mm 9 mm	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	0.5 mm	0.02 in
JAE Electronics WR-60S-VFH05-N1	2	Gold	Surface Mount	3.75 mm	0.148 in	60	4.5 mm 5.5 mm 6.5 mm	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	124	$ 5.62

General part information

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
