8380-2SG-311

Active

Conxall/Switchcraft

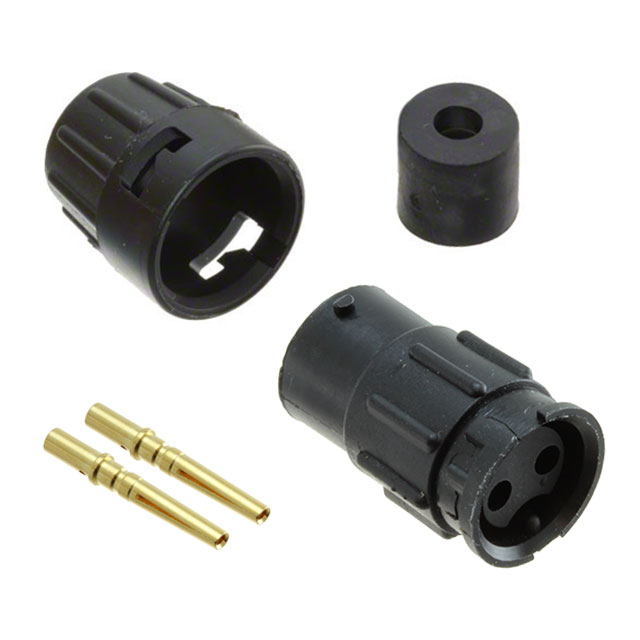

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8380-2SG-311

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8380-2SG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8380-2SG Series

Part	Mounting Type	Connector Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Backshell Material, Plating	Primary Material	Voltage Rating	Features	Contact Material	Fastening Type	Contact Finish - Mating	Orientation	Current Rating (Amps)	Number of Positions	Ingress Protection	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8380-2SG-3DC	Free Hanging (In-Line)	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Black	Crimp	Nylon Polyamide (PA)	Plastic	600 V	Backshell	Brass	Bayonet Lock	Gold	Keyed	Varies by Wire Gauge	2	Weathertight	Unshielded
Conxall/Switchcraft 8380-2SG-321	Free Hanging (In-Line)	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Black	Crimp	Nylon Polyamide (PA)	Plastic	600 V	Backshell	Brass	Bayonet Lock	Gold	Keyed	Varies by Wire Gauge	2	Weathertight	Unshielded	5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 8380-2SG-519	Free Hanging (In-Line)	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Black	Crimp	Nylon Polyamide (PA)	Plastic	600 V	Backshell	Brass	Bayonet Lock	Gold	Keyed	Varies by Wire Gauge	2	Weathertight	Unshielded	4.83 mm		0.19 in	0.21 in	5.33 mm
Conxall/Switchcraft 8380-2SG-311	Free Hanging (In-Line)	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Black	Crimp	Nylon Polyamide (PA)	Plastic	600 V	Backshell	Brass	Bayonet Lock	Gold	Keyed	Varies by Wire Gauge	2	Weathertight	Unshielded						2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 8380-2SG-315	Free Hanging (In-Line)	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Black	Crimp	Nylon Polyamide (PA)	Plastic	600 V	Backshell	Brass	Bayonet Lock	Gold	Keyed	Varies by Wire Gauge	2	Weathertight	Unshielded									0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.59
		25	$ 5.24
		50	$ 4.99
		100	$ 4.76
		300	$ 4.40
		500	$ 4.24
		1000	$ 4.04
		2500	$ 3.79

Description

General part information

8380-2SG Series

2 Position Circular Connector Receptacle, Female Sockets Crimp
