XBP06V0U25R-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 14VC FBP1006-2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBP06V0U25R-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 14VC FBP1006-2A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP06V0U25R-G |
|---|---|
| Applications | USB, DVI, HDMI |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.25 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |

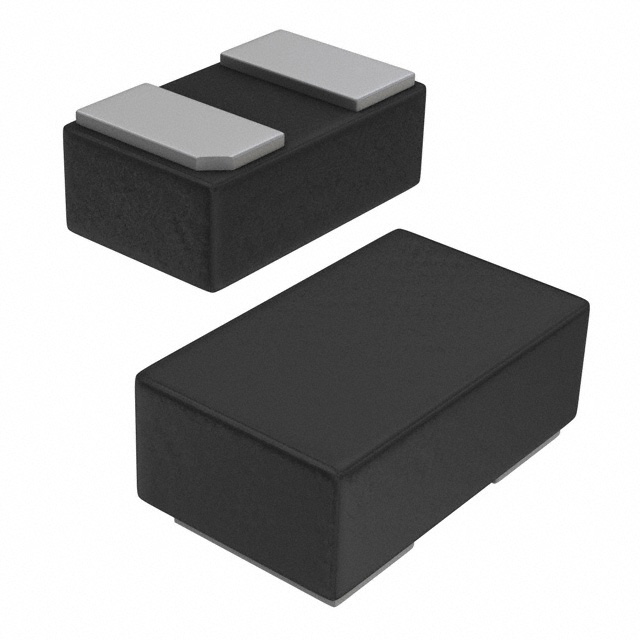

| Package / Case | 0402 (1006 Metric) |
| Power Line Protection | False |
| Supplier Device Package | FBP1006-2A |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 14 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
| 30000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
| 100000 | $ 0.06 | |||
Description
General part information
XBP06 Series
14V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount FBP1006-2A
Documents
Technical documentation and resources
