Q-2W05E0003108I

Active

Amphenol Custom Cable

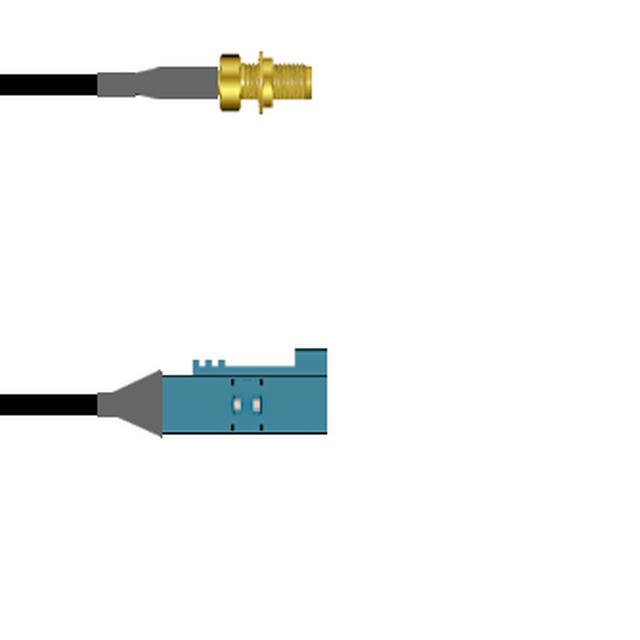

CBL ASSY SMA-FAKRA III JK-JK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2W05E0003108I

Active

Amphenol Custom Cable

CBL ASSY SMA-FAKRA III JK-JK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2W05E0003108I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra III (Gen 3.0) Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to Fakra III

Q-2W05E0 Series

Part	Connector Impedance	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Feature	Overall Impedance	Length	Length	Length	Frequency - Max [Max]	Color	Features	1st Connector	1st Contact Gender	2nd Contact Gender	Style	Cable Impedance	1st Connector Mounting Type	2nd Connector
Amphenol Custom Cable Q-2W05E00032.5M	50 Ohms	Free Hanging (In-Line)	RG-174	Bulkhead - Front Side Nut	50 Ohms	8.2 '	98.4 in	2.5 m	1 GHz	Black	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005006I	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms		6 in	152.4 mm	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005003M	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms	9.8 '	118.1 in	3 m	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005036I	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms		36 in	91.44 cm	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005048I	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms	4 ft	48 in	1200 mm	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005012I	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms		12 "	304.8 mm	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E00030.5M	50 Ohms	Free Hanging (In-Line)	RG-174	Bulkhead - Front Side Nut	50 Ohms		19.69 "	50 cm	1 GHz	Black	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0003108I	50 Ohms	Free Hanging (In-Line)	RG-174	Bulkhead - Front Side Nut	50 Ohms	9 ft	108 in	2.7 m	1 GHz	Black	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005.75M	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms		29.53 "	750 mm	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack
Amphenol Custom Cable Q-2W05E0005072I	50 Ohms	Free Hanging (In-Line)	RG-316	Bulkhead - Front Side Nut	50 Ohms	6 ft	72 in	1.8 m	3 GHz	Copper	Shielded	SMA Jack	Female	Female	SMA to Fakra III	50 Ohms	Panel Mount	Fakra III (Gen 3.0) Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.12
		25	$ 73.64
		50	$ 72.17
		100	$ 70.70
		250	$ 69.22

Description

General part information

Q-2W05E0 Series

Cable Assembly Coaxial SMA to Fakra III RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
