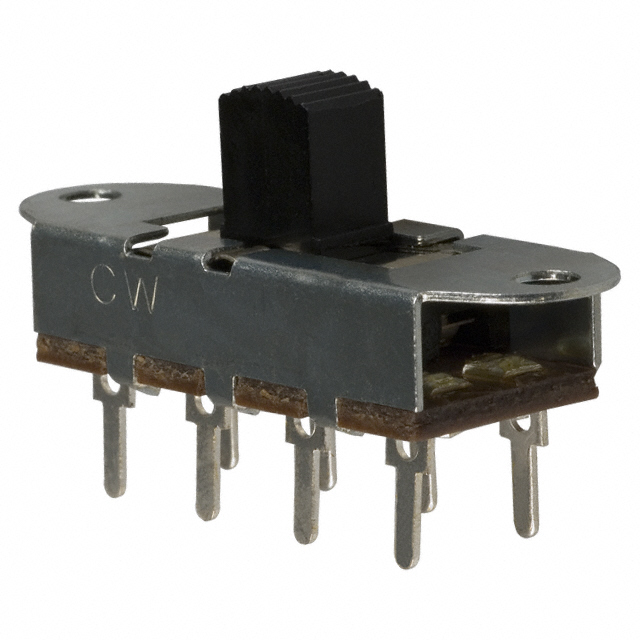

G-1128S-1110

Active

CW Industries

SWITCH SLIDE DP3T 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G-1128S-1110

Active

CW Industries

SWITCH SLIDE DP3T 11A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G-1128S-1110

Actuator Length [x]	8.74 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	DP3T
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	11 A, 500 mA
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On-On
Switch Travel [custom]	6.25 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

G-1128S Series

Part	Circuit	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Actuator Type	Mechanical Life	Termination Style	Contact Finish	Actuator Length [x]	Contact Timing	Contact Material	Switch Travel [custom]	Actuator Material	Mounting Type
CW Industries G-1128S-0053	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	PC Pin	Silver	8.74 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)
CW Industries G-1128S-0058	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	Solder Lug	Silver	8.74 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)
CW Industries G-1128S-0059	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	PC Pin	Silver	8.74 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)	Through Hole
CW Industries G-1128S-0056	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	PC Pin	Silver	10.31 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)
CW Industries G-1128S-1110	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	PC Pin	Silver	8.74 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)
CW Industries G-1128S-0054	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	PC Pin	Silver		Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)
CW Industries G-1128S-0000	DP3T	11 A 500 mA	6000 Cycles	125 V	104 °C	-10 °C	125 VDC	On-On-On	Standard	10000 Steps	Solder Lug	Silver	8.74 mm	Not Specified	Copper	6.25 mm	Nylon 6/6 Polyamide (PA66)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.71
		10	$ 2.20
		25	$ 2.02
		100	$ 1.78
		250	$ 1.63
		500	$ 1.53
		1000	$ 1.43
		2500	$ 1.30
		5000	$ 1.22

Description

General part information

G-1128S Series

Slide Switch DP3T Panel Mount

Documents

Technical documentation and resources
