UF4001

Active

ON Semiconductor

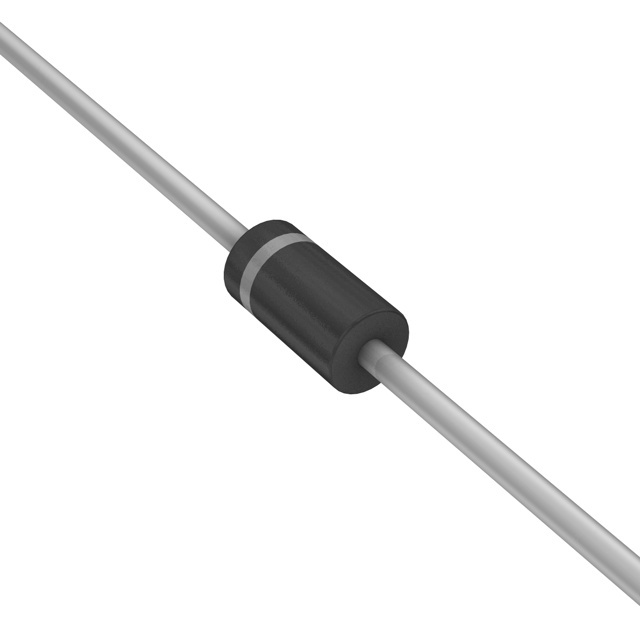

FAST / ULTRAFAST DIODE, 50 V, 1 A, SINGLE, 1 V, 50 NS, 30 A

Search across all available documentation for this part.

Active

ON Semiconductor

FAST / ULTRAFAST DIODE, 50 V, 1 A, SINGLE, 1 V, 50 NS, 30 A

Technical Specifications

Parameters and characteristics for this part

Specification	UF4001

Capacitance @ Vr, F	17 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1 V

1.0A Ultra Fast Recovery Rectifier

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Technology
ON Semiconductor UF4002	1 V	10 µA	1 A	Axial DO-204AL DO-41	DO-41	150 °C	-65 C	17 pF	50 ns	100 V	Through Hole	200 mA 500 ns	Standard
ON Semiconductor UF4001	1 V	10 µA	1 A	Axial DO-204AL DO-41	DO-41	150 °C	-65 C	17 pF	50 ns	50 V	Through Hole	200 mA 500 ns	Standard
ON Semiconductor UF4005	1.7 V	10 µA	1 A	Axial DO-204AL DO-41	DO-41	150 °C	-65 C	17 pF	75 ns	600 V	Through Hole	200 mA 500 ns	Standard
ON Semiconductor UF4006	1.7 V	10 µA	1 A	Axial DO-204AL DO-41	DO-41	150 °C	-65 C	17 pF	75 ns	800 V	Through Hole	200 mA 500 ns	Standard
ON Semiconductor UF4003	1 V	10 µA	1 A	Axial DO-204AL DO-41	DO-41	150 °C	-65 C	17 pF	50 ns	200 V	Through Hole	200 mA 500 ns	Standard
ON Semiconductor UF4005	1.7 V	5 µA	1 A	Axial DO-204AL DO-41	DO-41	175 ░C	-50 °C		75 ns	600 V	Through Hole	200 mA 500 ns	Standard
