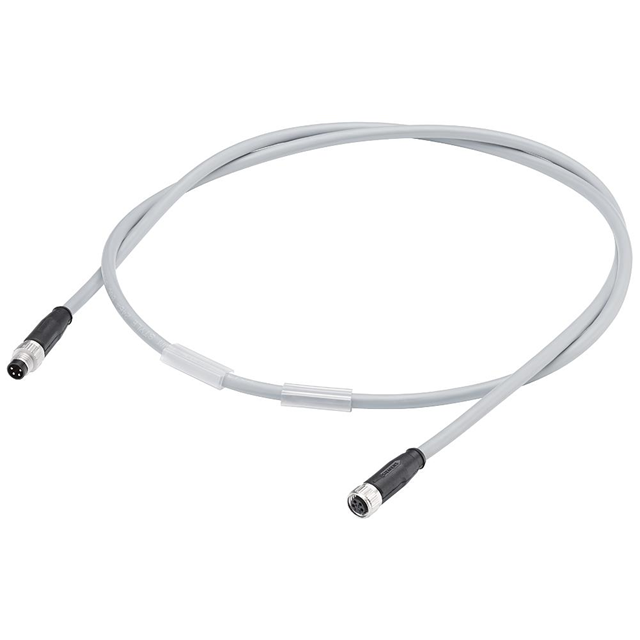

6ES71942LN151AA0

Active

Siemens

CBL 4POS MALE TO FMALE 49.2'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ET 200 PN Module Features and Functions +4

6ES71942LN151AA0

Active

Siemens

CBL 4POS MALE TO FMALE 49.2'

Deep-Dive with AI

DocumentsDatasheet ET 200 PN Module Features and Functions +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71942LN151AA0

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M8
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Ingress Protection	IP67, IP65
Length [x]	15 m
Length [x]	49.2 ft
Shielding	Unshielded
Usage	Industrial Environments

6ES71942 Series

Part	2nd Connector Shell Size - Insert	1st Connector Type	2nd Connector Type	2nd Connector Mounting Type	Cable Type	1st Connector Gender	Length [x]	Length [x]	Assembly Configuration	Color	1st Connector Shell Size - Insert	2nd Connector Number of Positions	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Shielding	2nd Connector Number of Positions Loaded	1st Connector Number of Positions	Cable Material	Ingress Protection	2nd Connector Gender	Usage	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Orientation	Mounting Type	Connector Type	Shell Material	Number of Positions	Shell Size - Insert
Siemens 6ES71942LN151AA0	M8	Receptacle	Plug	Free Hanging (In-Line)	Round	Male Pins	15 m	49.2 ft	Standard	Gray	M8	4	Free Hanging (In-Line)	All	Unshielded	All	4	Polyvinyl Chloride (PVC)	IP65 IP67	Female Sockets	Industrial Environments
Siemens 6ES71942LH500AA0	M8	Receptacle	Receptacle	Free Hanging (In-Line)	Round	Male Pins			Standard	Green	M8	4	Free Hanging (In-Line)	All	Shielded	All	4	Polyvinyl Chloride (PVC)	IP65 IP67		Industrial Environments
Siemens 6ES71942AA000AA0										Black Silver					Unshielded				IP65 IP67			Metal	-30 ░C	85 °C	Automation Industrial	Keyed	Free Hanging (In-Line)	Male Pins Plug	Metal	4	M8-4
Siemens 6ES71942MH020AA0	M8	Receptacle	Receptacle	Free Hanging (In-Line)	Round	Male Pins	190 mm	0.62 ft	Standard	Green	M8	4	Free Hanging (In-Line)	All	Shielded	All	4	Polyurethane (PUR)	IP65 IP67		Industrial Environments
Siemens 6ES71942MH100AB0	M8	Receptacle Right Angle	Receptacle Right Angle	Free Hanging (In-Line)	Round	Male Pins	1 m	3.28 ft	Standard	Green	M8	4	Free Hanging (In-Line)	All	Shielded	All	4	Polyurethane (PUR)	IP65 IP67		Industrial Environments
Siemens 6ES71942AC000AA0										Black Silver					Unshielded				IP65 IP67			Metal	-30 ░C	85 °C	Automation Industrial	Keyed	Free Hanging (In-Line)	Receptacle Female Sockets	Metal	4	M8-4
Siemens 6ES71942MH021AA0	M8	Receptacle	Plug	Free Hanging (In-Line)	Round	Male Pins	190 mm	0.62 ft	Standard	Gray	M8	4	Free Hanging (In-Line)	All	Unshielded	All	4	Polyurethane (PUR)	IP65 IP67	Female Sockets	Industrial Environments
Siemens 6ES71942MN100AA0	M8	Receptacle	Receptacle	Free Hanging (In-Line)	Round	Male Pins			Standard	Green	M8	4	Free Hanging (In-Line)	All	Shielded	All	4	Polyurethane (PUR)	IP65 IP67		Industrial Environments
Siemens 6ES71942MH500AA0	M8	Receptacle	Receptacle	Free Hanging (In-Line)	Round	Male Pins			Standard	Green	M8	4	Free Hanging (In-Line)	All	Shielded	All	4	Polyurethane (PUR)	IP65 IP67		Industrial Environments
Siemens 6ES71942LH101AA0	M8	Receptacle	Plug	Free Hanging (In-Line)	Round	Male Pins	1 m	3.28 ft	Standard	Gray	M8	4	Free Hanging (In-Line)	All	Unshielded	All	4	Polyvinyl Chloride (PVC)	IP65 IP67	Female Sockets	Industrial Environments

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 88.99
