GT25H2-16DP-2.2H

Active

Hirose Electric USA, Inc.

CONN PIN HEADER PCB SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

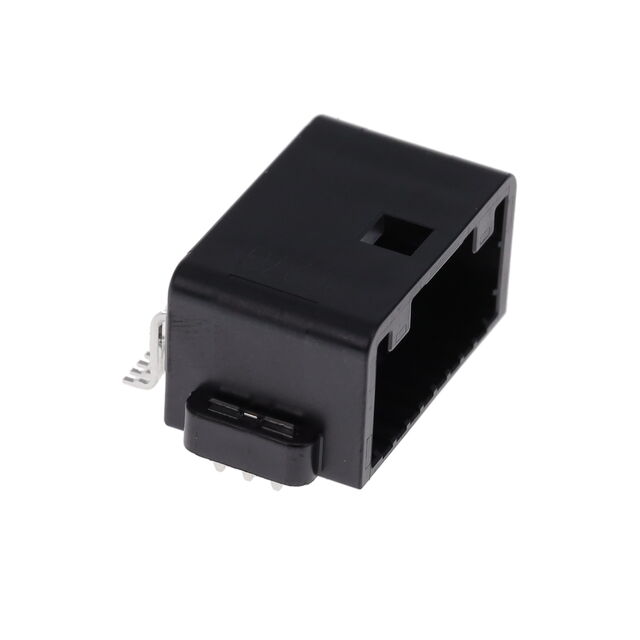

GT25H2-16DP-2.2H

Active

Hirose Electric USA, Inc.

CONN PIN HEADER PCB SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT25H2-16DP-2.2H

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Polyphenylene Sulfide (PPS)
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

GT25H Series

Part	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Pitch - Mating	Pitch - Mating	Termination	Shrouding	Contact Shape	Connector Type	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Insulation Material	Features	Number of Rows	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Number of Positions	Voltage Rating	Style	Contact Material	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions
Hirose Electric USA, Inc. GT25H-2024SCF(02)	Crimp	20 AWG	24 AWG	Socket
Hirose Electric USA, Inc. GT25H2-20DP-2.2H(99)					0.087 in	2.2 mm	Solder	Shrouded - 4 Wall	Square	Header	13 mm	0.512 in	Black	3 A	Polyphenylene Sulfide (PPS)	Solder Retention	2	0.22 in	5.59 mm	-40 °C	105 ░C	Male Pin	Latch Holder	20	250 VAC	Board to Cable/Wire	Brass	All	Tin	Surface Mount Right Angle
Hirose Electric USA, Inc. GT25H-32DP-2.2V(60)					0.087 in	2.2 mm	Solder	Shrouded - 4 Wall	Square	Header	18.8 mm	0.74 in	Gray	3 A	Nylon Polyamide (PA)	Solder Retention	2			-40 °C	105 ░C	Male Pin	Push-Pull		250 VAC	Board to Cable/Wire	Brass	All	Tin	Surface Mount
Hirose Electric USA, Inc. GT25H-12DP-2.2V(34)
Hirose Electric USA, Inc. GT25H-32DP-2.2V
Hirose Electric USA, Inc. GT25H2-40DP-2.2V					0.087 in	2.2 mm	Solder	Shrouded - 4 Wall	Square	Header	18.8 mm	0.74 in	Black	3 A	Polyphenylene Sulfide (PPS)	Solder Retention	2	0.22 in	5.59 mm	-40 °C	105 ░C	Male Pin	Latch Holder	40	250 VAC	Board to Cable/Wire	Brass	All	Tin	Surface Mount	3 mm	0.118 in
Hirose Electric USA, Inc. GT25H2-16DP-2.2H					0.087 in	2.2 mm	Solder	Shrouded - 4 Wall	Square	Header	13 mm	0.512 in	Black		Polyphenylene Sulfide (PPS)		2			-40 °C	105 ░C	Female Socket	Latch Holder			Board to Cable/Wire	Brass	All	Tin	Surface Mount Right Angle			16
Hirose Electric USA, Inc. GT25H-32DP-2.2V(34)
Hirose Electric USA, Inc. GT25H-20DP-2.2H(60)
Hirose Electric USA, Inc. GT25H-24DP-2.2H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.24
		10	$ 1.95
		100	$ 1.74
	Digi-Reel®	1	$ 2.24
		10	$ 1.95
		100	$ 1.74
	Tape & Reel (TR)	200	$ 1.57
		400	$ 1.42
		600	$ 1.31
		1000	$ 1.12
		2000	$ 1.08
		5000	$ 0.99
		10000	$ 0.97

Description

General part information

GT25H Series

Connector Header Surface Mount, Right Angle 16 position 0.087" (2.20mm)
