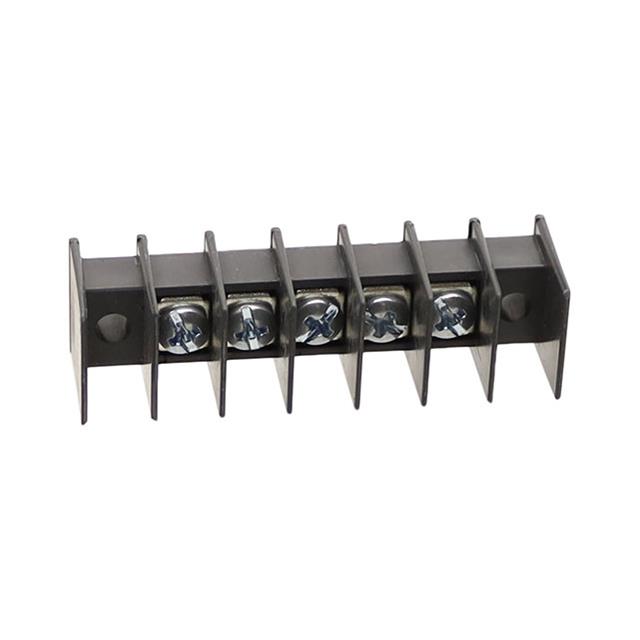

325000-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325000-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325000-05-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	5
Number of Rows	1
Number of Wire Entries	5
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325000 Series

Part	Material - Insulation	Number of Wire Entries	Number of Rows	Voltage Rating	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Features	Barrier Type	Bottom Termination	Top Termination	Terminal Screw Material	Terminal Block Type	Mounting Type	Operating Temperature	Pitch [x]	Pitch [x]	Material Flammability Rating	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries 325000-21-0	Polypropylene (PP)	21	1	300 VDC	21	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-12-0	Polypropylene (PP)	12	1	300 VDC	12	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-11-0	Polypropylene (PP)	11	1	300 VDC	11	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-01-0	Polypropylene (PP)		1	300 VDC	1	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C			UL94 V-0	15 A	1
Curtis Industries 325000-05-0	Polypropylene (PP)	5	1	300 VDC	5	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-04-0	Polypropylene (PP)	4	1	300 VDC	4	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-23-0	Polypropylene (PP)		1	300 VDC	23	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A	23
Curtis Industries 325000-25-0	Polypropylene (PP)	25	1	300 VDC	25	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-18-0	Polypropylene (PP)	18	1	300 VDC	18	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A
Curtis Industries 325000-17-0	Polypropylene (PP)	17	1	300 VDC	17	14 AWG	22 AWG	Flange	2 Wall (Dual)	Closed	Screws	Steel	Barrier Block	Chassis Panel	105 C	8.26 mm	0.325 in	UL94 V-0	15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.50
		10	$ 2.67
		30	$ 2.50
		50	$ 2.22
		100	$ 2.17
		250	$ 2.13

Description

General part information

325000 Series

5 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
