4302.2003

Active

SCHURTER Inc.

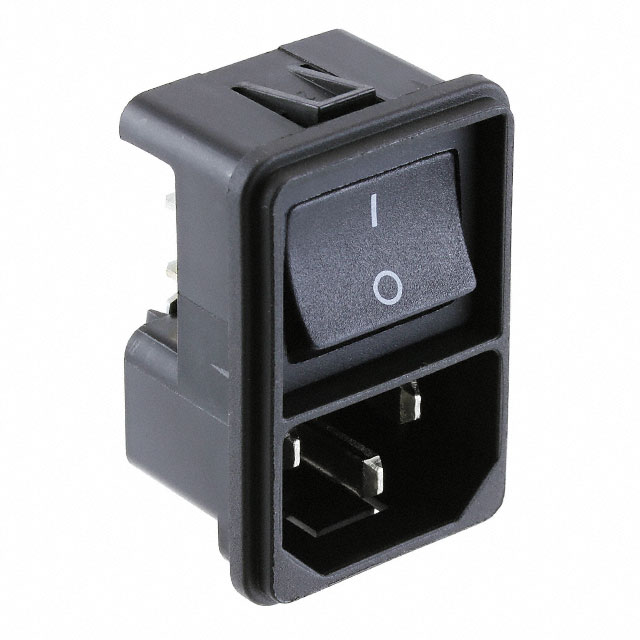

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KEB2

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KEB2

Technical Specifications

Parameters and characteristics for this part

Specification	4302.2003

Accomodates a Fuse	False
Approval Agency	VDE, CCC, UL, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	42 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Material Flammability Rating	Connector Style	Ingress Protection	Current Rating - Appliance Inlet	Approval Agency	Switch Features	Filter Type	Mounting Type	Termination	Termination	Accomodates a Fuse	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
SCHURTER Inc. 4302.2003	UL94 V-0	IEC 320-C14	IP40	10 A	CCC CSA UL VDE	Switch On-Off	Unfiltered - Commercial	Panel Mount Snap-In	0.189 " 4.8 mm	Quick Connect		2 mm	0.079 in	250 VAC	Receptacle Male Blades - Module	42 mm	27.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
