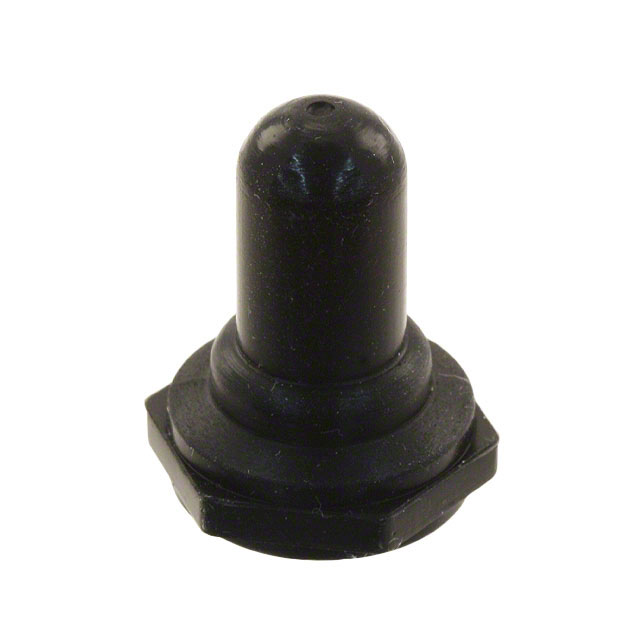

1131/40 S 17

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1131/40 S 17

Actuator Diameter [diameter]	0.234 in
Actuator Diameter [diameter]	5.95 mm
Color	Black
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	21.8 mm
Size / Dimension [z]	0.859 in
Thread Size	M12x1
Type	Full Boot, Toggle

Part	Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Material	Thread Size	Color	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Ingress Protection	Size / Dimension [z]
APM HEXSEAL 1131/25 17	Full Boot Toggle	2.95 mm	0.116 in	0.562 in	14.3 mm	Silicone Rubber	M6x0.75	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68
APM HEXSEAL 1131/40 S 17	Full Boot Toggle	5.95 mm	0.234 in	21.8 mm		Silicone Rubber	M12x1	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	0.859 in
APM HEXSEAL 1131/26 17 M12-.75	Full Boot Toggle	5.55 mm	0.219 in	27.76 mm		Silicone Rubber	M12x0.75	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	1.093 in
APM HEXSEAL 1131/31 M12-2202	Full Boot Toggle	6.5 mm	0.256 in	21.4 mm		Silicone Rubber	M12x1	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	0.844 in
APM HEXSEAL 1131/26 2501	Full Boot Toggle	5.55 mm	0.219 in	27.76 mm		Silicone Rubber	15/32-32 NS-2B	Gray	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	1.093 in
APM HEXSEAL 1131/26 17 M12-.10	Full Boot Toggle	5.55 mm	0.219 in	27.76 mm		Silicone Rubber	M12x1	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	1.093 in
APM HEXSEAL 1131/31 17	Full Boot Toggle	6.5 mm	0.256 in	21.4 mm		Silicone Rubber	15/32-32 NS-2B	Black	Front of Panel	204 °C	-70 °C	Multiple Series	IP66/IP68	0.844 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 2.60

General part information

TOGGLE FULL BOOT BLACK
