R222561701

Active

Radiall USA, Inc.

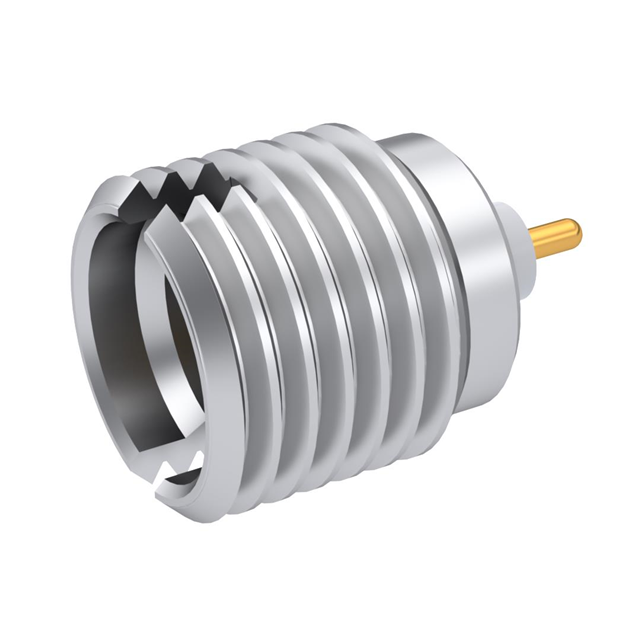

SMP M STR SB THD PIN C100

Deep-Dive with AI

Search across all available documentation for this part.

R222561701

Active

Radiall USA, Inc.

SMP M STR SB THD PIN C100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R222561701

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation, Smooth Bore
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

R22256 Series

Part	Shield Termination	Voltage Rating	Contact Termination	Dielectric Material	Body Material	Mounting Type	Fastening Type	Center Contact Plating	Number of Ports	Housing Color	Connector Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Features	Mating Cycles
Radiall USA, Inc. R222561030
Radiall USA, Inc. R222561001W	Solder	335 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	40 GHz	Extended Insulation Full Detent
Radiall USA, Inc. R222561701W	Solder	335 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	40 GHz	Extended Insulation Smooth Bore	1000
Radiall USA, Inc. R222561030W
Radiall USA, Inc. R222561701	Solder	335 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1		Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	40 GHz	Extended Insulation Smooth Bore	1000
Radiall USA, Inc. R222561301W	Solder	335 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	12 GHz	Extended Insulation Limited Detent	500
Radiall USA, Inc. R222561001	Solder	335 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1		Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	12 GHz	Extended Insulation Full Detent
Radiall USA, Inc. R222561761W	Solder	350 V	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	40 GHz	Extended Insulation Smooth Bore	1000
Radiall USA, Inc. R222561301	Solder	250 VDC	Solder	Polytetrafluoroethylene (PTFE)	Stainless Steel	Through Hole	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	12 GHz	Extended Insulation Limited Detent
Radiall USA, Inc. R222561761	Solder	350 V	Solder	Polyetheretherketone (PEEK)	Stainless Steel	Free Hanging (In-Line)	Snap-On	Gold	1	Silver	Male Pin Receptacle	50 Ohms	-65 ░C	165 °C	Beryllium Copper	40 GHz	Extended Insulation	1000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.86
		10	$ 19.14
		25	$ 18.32
		50	$ 17.73
		100	$ 17.13
		300	$ 16.19
		500	$ 15.72

Description

General part information

R22256 Series

SMP Connector Receptacle, Male Pin 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

No documents available
