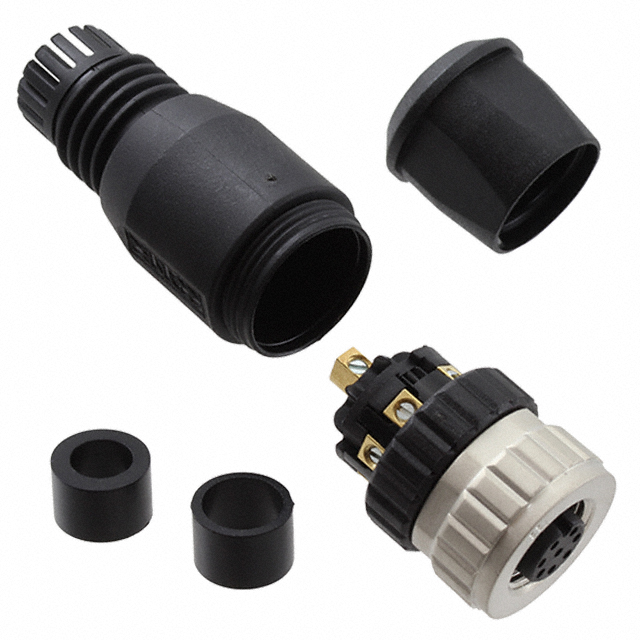

43-00130

Active

Amphenol CONEC

SENSOR CONN, M12, RCPT, 8POS, CABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, RCPT, 8POS, CABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-00130

Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Max] [custom]	8 mm
Cable Opening [Min] [custom]	4 mm
Cable Opening [Min] [custom]	0.157 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	2 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Plastic
Shell Material	Polyamide (PA6), Nylon 6, Glass Filled
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VDC

Part	Primary Material	Orientation	Termination	Shell Size - Insert	Current Rating (Amps)	Mounting Type	Shielding	Features	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Backshell Material, Plating	Ingress Protection	Connector Type	Contact Finish - Mating	Insert Material	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Shell Material	Shell Finish
Amphenol CONEC 43-00130	Plastic	A	Screw	M12-8	2 A	Free Hanging (In-Line)	Unshielded	Backshell Coupling Nut	Copper Zinc	Black Silver	-30 ░C	85 °C	UL94	Glass Filled Nylon 6 Polyamide (PA6)	IP67 - Dust Tight Waterproof	Female Sockets Plug	Gold	Polyamide (PA6) Nylon 6	8	4 mm	0.315 in	0.157 in	8 mm	30 VDC	Polyamide (PA6) Nylon 6 Glass Filled
Amphenol CONEC 43-00133	Metal	A	Screw	M12-8	2 A	Free Hanging (In-Line) Right Angle	Unshielded		Copper Zinc	Black Silver	-30 ░C	85 °C	UL94 HB UL94 V-0		IP67 - Dust Tight Waterproof	Male Pins Receptacle	Gold	Polyamide (PA6) Nylon 6	8	4 mm	0.315 in	0.157 in	8 mm	30 VDC	Gadolinium-Zinc	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Screw
