EP5W20RJ

Active

TE Connectivity Passive Product

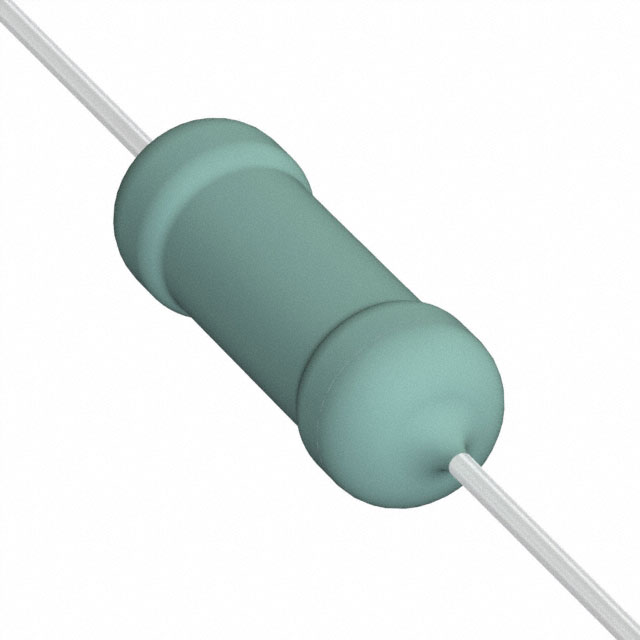

RES 20 OHM 5% 5W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EP5W20RJ

Active

TE Connectivity Passive Product

RES 20 OHM 5% 5W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EP5W20RJ

Composition	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	5 W
Resistance	20 Ohms
Size / Dimension [diameter]	8.5 mm
Size / Dimension [diameter]	0.335 in
Size / Dimension [x]	0.984 in
Size / Dimension [x]	25 mm
Supplier Device Package	Axial
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

EP5W Series

Part	Features	Resistance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Power (Watts)	Composition	Temperature Coefficient	Number of Terminations	Tolerance	Supplier Device Package	Size / Dimension [x]	Size / Dimension [diameter]
TE Connectivity Passive Product EP5W22RJ	Flame Retardant Coating Pulse Withstanding Safety	22 Ohms	Axial	155 °C	-55 °C	0.984 in	8.5 mm	25 mm	0.335 in	5 W	Wirewound	300 ppm/°C	2	5 %	Axial
TE Connectivity Passive Product EP5WS22RJ	Flame Retardant Coating Pulse Withstanding Safety	22 Ohms	Axial	155 °C	-55 °C	17.5 mm			6.5 mm	5 W	Wirewound	300 ppm/°C	2	5 %	Axial	0.689 in	0.256 in
TE Connectivity Passive Product EP5W47RJ	Flame Retardant Coating Pulse Withstanding Safety	47 Ohms	Axial	155 °C	-55 °C	0.984 in	8.5 mm	25 mm	0.335 in	5 W	Wirewound	300 ppm/°C	2	5 %	Axial
TE Connectivity Passive Product EP5W20RJ	Flame Retardant Coating Pulse Withstanding Safety	20 Ohms	Axial	155 °C	-55 °C	0.984 in	8.5 mm	25 mm	0.335 in	5 W	Wirewound	300 ppm/°C	2	5 %	Axial
TE Connectivity Passive Product EP5WS3K3J	Flame Retardant Coating Pulse Withstanding Safety	3300 Ohms	Axial	155 °C	-55 °C	17.5 mm			6.5 mm	5 W	Wirewound	300 ppm/°C	2	5 %	Axial	0.689 in	0.256 in
TE Connectivity Passive Product EP5WS220RJ	Flame Retardant Coating Pulse Withstanding Safety	220 Ohms	Axial	155 °C	-55 °C	17.5 mm			6.5 mm	5 W	Wirewound	300 ppm/°C	2	5 %	Axial	0.689 in	0.256 in
TE Connectivity Passive Product EP5W150RJ	Flame Retardant Coating Pulse Withstanding Safety	150 Ohms	Axial	155 °C	-55 °C	0.984 in	8.5 mm	25 mm	0.335 in	5 W	Wirewound	300 ppm/°C	2	5 %	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.67
		10	$ 0.55
		25	$ 0.51
		40	$ 0.47
		80	$ 0.38
		230	$ 0.35
		500	$ 0.31

Description

General part information

EP5W Series

20 Ohms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
