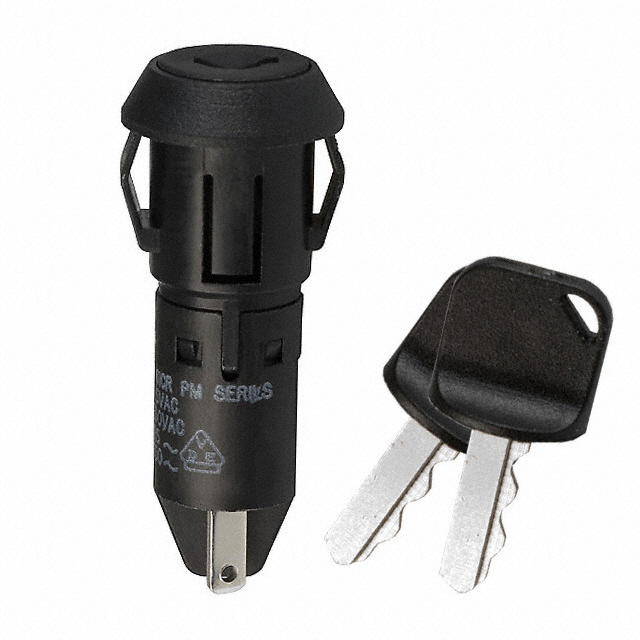

PM061UEBM05KQ22

Obsolete

Littelfuse/Commercial Vehicle Products

SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; KEY: FLAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM061UEBM05KQ22

Obsolete

Littelfuse/Commercial Vehicle Products

SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; KEY: FLAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM061UEBM05KQ22

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPST
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange [z]	34.52 mm
Electrical Life	10000 Cycles
Key Removable Positions	All
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Switch Function	Off-On
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Pm0 Series Series

5 Tumbler Miniature Snap-in Switchlock

Part	Actuator Type	Number of Positions	Mounting Type	Angle of Throw	Contact Material	Depth Behind Flange [z]	Switch Function	Key Removable Positions	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Circuit	Electrical Life	Contact Finish	Termination Style	Contact Timing
Littelfuse/Commercial Vehicle Products PM061UEBMWCKQTT	Flat Key	2	Panel Mount Snap-In	90 °	Copper	34.52 mm	Off-On	All	125 V	4 A	28 V	SPST	10000 Cycles	Silver	Wire Leads	Not Specified
Littelfuse/Commercial Vehicle Products PM061UEBMWCKQ22	Flat Key	2	Panel Mount Snap-In	90 °	Copper	34.52 mm	Off-On	All	125 V	4 A	28 V	SPST	10000 Cycles	Silver	Wire Leads	Not Specified
Littelfuse/Commercial Vehicle Products PM061UEBM05KQ22	Flat Key	2	Panel Mount Snap-In	90 °	Copper	34.52 mm	Off-On	All	125 V	4 A	28 V	SPST	10000 Cycles	Silver	Quick Connect - 0.110" (2.8mm)	Not Specified

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.14
		18	$ 22.83
		36	$ 21.81
		54	$ 20.65
		90	$ 19.88
TME	N/A	100	$ 27.02

Description

General part information

Pm0 Series Series

Those that design point-of-sale terminals and marine equipment need a high-quality switchlock that can stand up to repeated use. That’s why C&K’s PM series 5 tumbler miniature snap-in switchlock series is so popular. With snap-in mounting, optional wire lead terminations and positive detent, it gives designers exactly what they need to create a successful product.
