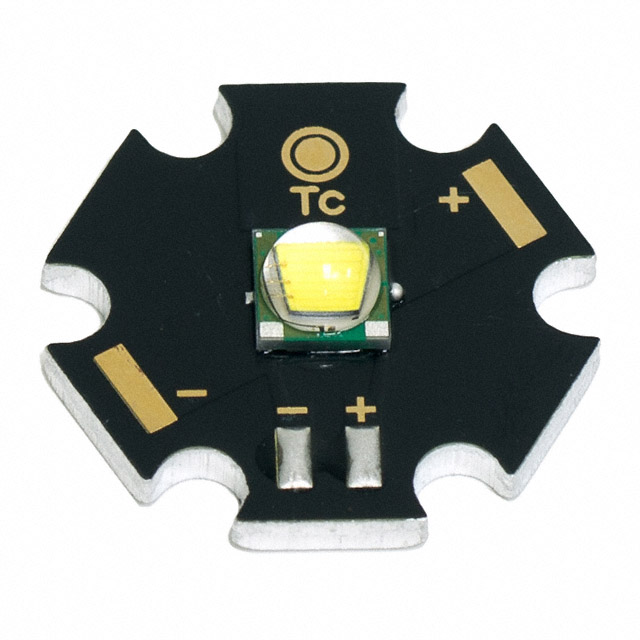

L2-MLN1-S

Obsolete

Bivar Inc.

LED MOD L2 XLAMP STARBRD 4100K

Search across all available documentation for this part.

Obsolete

Bivar Inc.

LED MOD L2 XLAMP STARBRD 4100K

Technical Specifications

Parameters and characteristics for this part

Specification	L2-MLN1-S

CCT (K)	4100 K
Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	75
Current - Max [Max]	3 A
Current - Test	400 mA
Height [z]	4.9 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	109 lm/W
Luminous Flux @ Current/Temperature	124 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Temperature - Test	70 °C
Type	LED Module
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.85 V

Part	Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Lumens/Watt @ Current - Test	Height [z]	Temperature - Test	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Configuration	Type	Lens Type	CRI (Color Rendering Index)	Color
Bivar Inc. L2-MLN1-S	400 mA	2.85 V	4100 K	109 lm/W	4.9 mm	70 °C	125 °	19.9 mm	19.9 mm	3 A	124 lm	Starboard	LED Module	Domed	75	Neutral White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module L2, XLamp® XM-L White, Neutral Starboard

Technical documentation and resources
