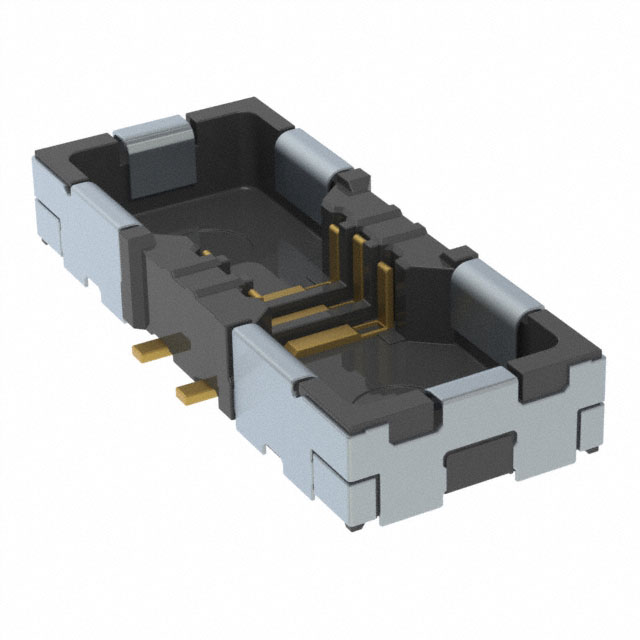

245811302010829+
ActiveKyocera AVX
BOARD TO BOARD 3 PINS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
245811302010829+
ActiveKyocera AVX
BOARD TO BOARD 3 PINS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 245811302010829+ |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Height Above Board | 0.023 in |
| Height Above Board | 0.59 mm |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Rows | 1 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.46 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.25 | |||
| Tape & Reel (TR) | 15000 | $ 0.19 | ||
Description
General part information
245811 Series
3 Position Connector Receptacle, Outer Shroud Contacts Surface Mount
