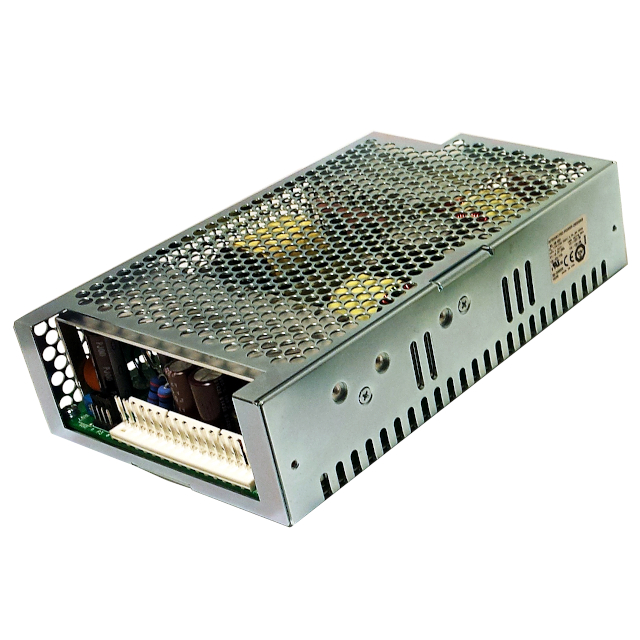

1010565CHCO
ActiveIntegrated Power Designs
REL-185-4006 CHCO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010565CHCO
ActiveIntegrated Power Designs
REL-185-4006 CHCO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010565CHCO |
|---|---|
| Applications | Industrial, Laboratory, Medical, ITE (Commercial) |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 20 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | 2 A |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 185 W |
| Size / Dimension [x] | 6.25 " |
| Size / Dimension [x] | 156.8 mm |
| Size / Dimension [y] | 3.96 in |
| Size / Dimension [y] | 100.5 mm |
| Size / Dimension [z] | 37.6 mm |
| Size / Dimension [z] | 1.48 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
1010565 Series
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output 2 | Standard Number | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Type | Current - Output 3 | Current - Output 4 | Voltage - Output 3 | Voltage - Output 2 | Approval Agency | Features | Voltage - Output 1 | Power (Watts) | Number of Outputs | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Integrated Power Designs | Chassis Mount | 70 °C | 0 °C | Industrial ITE (Commercial) Laboratory Medical | 3 A | 60601-1 62368-1 | 44.2 mm | 110.7 mm | 4.36 in | 1.74 in | 7.23 in | 183.6 mm | Chassis | 2 A | 2 A | 12 V | 24 V | CE cURus TUV UKCA | Adjustable Output Remote Sense Universal Input | 5 V | 185 W | 4 | 20 A |
Integrated Power Designs | Chassis Mount | 70 °C | 0 °C | Industrial ITE (Commercial) Laboratory Medical | 3 A | 60601-1 62368-1 | 37.6 mm | 100.5 mm | 3.96 in | 1.48 " | 6.25 " | 156.8 mm | Enclosed | 2 A | 2 A | 12 V | 24 V | CE cURus TUV UKCA | Adjustable Output Remote Sense Universal Input | 5 V | 185 W | 4 | 20 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 257.80 | |
| 25 | $ 242.38 | |||
| 100 | $ 236.18 | |||
Description
General part information
1010565 Series
Enclosed AC DC Converters 4 Output 5V 24V 12V -12V 85 ~ 264 VAC Input
