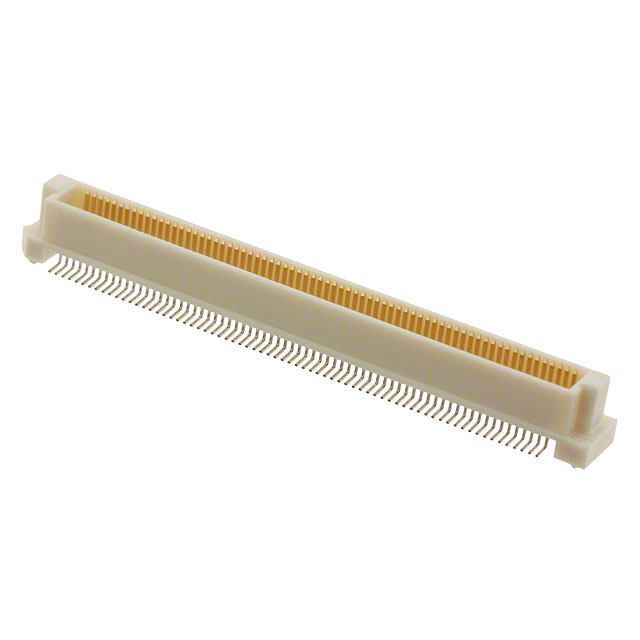

FX8C-140P-SV1(21)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX8C-140P-SV1(21)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX8C-140P-SV1(21)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	5.45 mm
Height Above Board [z]	0.214 in
Mated Stacking Heights	11 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.6 mm
Pitch [x]	0.024 in

FX8C Series

...

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Connector Type	Mounting Type	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX8C-140P-SV(92)	5 mm 10 mm	0.6 mm	0.024 in	Gold	2	0.175 in	4.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	140
Hirose Electric USA, Inc. FX8C-100P-SV2(71)	7 mm 12 mm	0.6 mm	0.024 in	Gold	2			Header Outer Shroud Contacts	Surface Mount	Board Guide	100	0.254 in	6.45 mm
Hirose Electric USA, Inc. FX8C-80P-SV(93)	5 mm 10 mm	0.6 mm	0.024 in	Gold	2	0.175 in	4.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	80
Hirose Electric USA, Inc. FX8C-140P-SV1(21)	6 mm 11 mm	0.6 mm	0.024 in	Gold	2		5.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	140	0.214 in
Hirose Electric USA, Inc. FX8C-120/120S11-SVJ(71)	5 mm 6 mm 7 mm 9 mm 11 mm	0.6 mm	0.024 in	Gold				Center Strip Contacts Receptacle	Surface Mount	Board Guide Bridged Receptacles (2)	240	0.156 in	3.96 mm
Hirose Electric USA, Inc. FX8C-100P-SV(93)	5 mm 10 mm	0.6 mm	0.024 in	Gold	2	0.175 in	4.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	100
Hirose Electric USA, Inc. FX8C-100S-SV(21)	5 mm 6 mm 7 mm 9 mm 11 mm	0.6 mm	0.024 in	Gold	2			Center Strip Contacts Receptacle	Surface Mount	Board Guide	100	0.156 in	3.96 mm
Hirose Electric USA, Inc. FX8C-80P-SV(21)	5 mm 10 mm	0.6 mm	0.024 in	Gold	2	0.175 in	4.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	80
Hirose Electric USA, Inc. FX8C-120P-SV1(92)	6 mm 11 mm	0.6 mm	0.024 in	Gold	2		5.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	120	0.214 in
Hirose Electric USA, Inc. FX8C-100P-SV1(93)	6 mm 11 mm	0.6 mm	0.024 in	Gold	2		5.45 mm	Header Outer Shroud Contacts	Surface Mount	Board Guide	100	0.214 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FX8C Series

140 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
