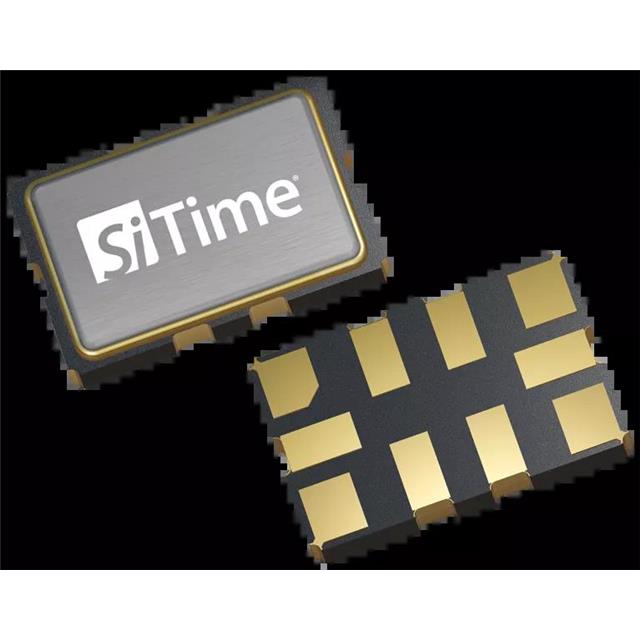

SIT5146AE-FA-33VTB55.700000

Active

SiTime

MEMS OSC TCXO 55.700000 MHZ LVCM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT5146AE-FA-33VTB55.700000

Active

SiTime

MEMS OSC TCXO 55.700000 MHZ LVCM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT5146AE-FA-33VTB55.700000

Absolute Pull Range (APR)	2.25 ppm
Base Resonator	MEMS
Current - Supply (Max) [Max]	57 mA
Frequency	55.7 MHz
Frequency Stability	1 ppm
Height - Seated (Max) [Max] [z]	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	10-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	VCTCXO
Voltage - Supply	3.3 V

SIT5146 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Absolute Pull Range (APR)	Frequency Stability	Type	Mounting Type	Package / Case	Current - Supply (Max) [Max]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Output	Voltage - Supply	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT5146AE-FA-33VTB55.700000	-40 °C	105 ░C	2.25 ppm	1 ppm	VCTCXO	Surface Mount	10-SMD No Lead	57 mA	55.7 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V
SiTime SIT5146AI-FK-33N0A12.288000	-40 °C	85 °C		500 ppb	TCXO	Surface Mount	10-SMD No Lead		12.288 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V
SiTime SIT5146AC-FK-33E0A50.000000	-20 C	70 °C		500 ppb	TCXO	Surface Mount	10-SMD No Lead		50 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V	51 mA	Enable/Disable
SiTime SIT5146AC-FA-33E0A7.372800	-20 C	70 °C		1 ppm	TCXO	Surface Mount	10-SMD No Lead		7.3728 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V	51 mA	Enable/Disable
SiTime SIT5146AICFK-28N0A16.368000	-40 °C	85 °C		500 ppb	TCXO	Surface Mount	10-SMD No Lead		16.368 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	Clipped Sine Wave	2.8 V
SiTime SIT5146AI-FK-33N0B10.000000	-40 °C	85 °C		500 ppb	TCXO	Surface Mount	10-SMD No Lead		10 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V
SiTime SIT5146AI-FA-33E0A33.333300	-40 °C	85 °C		1 ppm	TCXO	Surface Mount	10-SMD No Lead		33.3333 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V	51 mA	Enable/Disable
SiTime SIT5146AI-FK-33VTA40.000000	-40 °C	85 °C	2.75 ppm	500 ppb	VCTCXO	Surface Mount	10-SMD No Lead	57 mA	40 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V
SiTime SIT5146AI-FA-25N0A50.000000	-40 °C	85 °C		1 ppm	TCXO	Surface Mount	10-SMD No Lead		50 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	2.5 V
SiTime SIT5146AI-FK-33N0A10.000000	-40 °C	85 °C		500 ppb	TCXO	Surface Mount	10-SMD No Lead		10 MHz	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	0.042 in	1.06 mm	LVCMOS	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10	$ 250.63

Description

General part information

SIT5146 Series

55.7 MHz VCTCXO LVCMOS Oscillator 3.3V 10-SMD, No Lead

Documents

Technical documentation and resources
