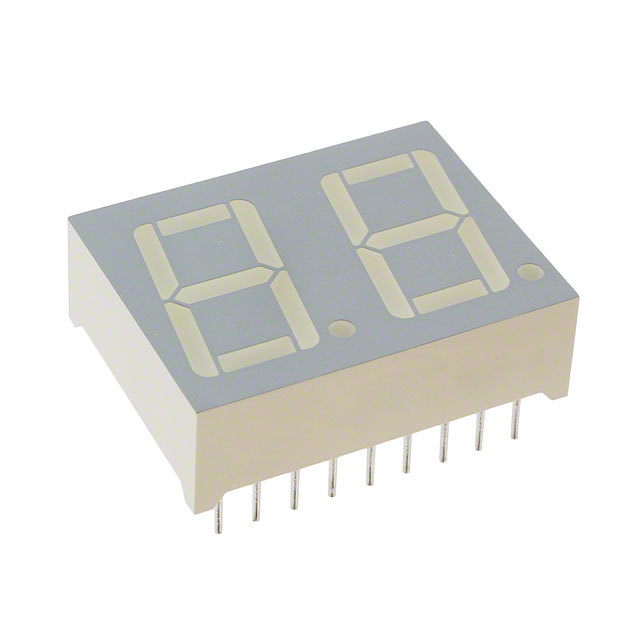

DC56-11GWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, GREEN, 20 MA, 2.2 V, 11000 µCD, 2, 14.22 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

DC56-11GWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, GREEN, 20 MA, 2.2 V, 11000 µCD, 2, 14.22 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC56-11GWA

Color	Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	19.05 mm
Size / Dimension [x]	0.75 in
Size / Dimension [y]	25 mm
Size / Dimension [y]	0.984 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

DC56-11 Series

Part	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Color	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Common Pin	Current - Test	Number of Characters	Wavelength - Peak
Kingbright DC56-11GWA	15.24 mm	0.6 in	18-DIP	2.2 V	0.56 in	14.22 mm	Green	11 mcd	62.5 mW	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	565 nm
Kingbright DC56-11SRWA	15.24 mm	0.6 in	18-DIP	1.85 V	0.56 in	14.22 mm	Red	28 mcd	75 mw	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	660 nm
Kingbright DC56-11YWA	15.24 mm	0.6 in	18-DIP	2.1 V	0.56 in	14.22 mm	Yellow	6.5 mcd	75 mw	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	590 nm
Kingbright DC56-11SURKWA	15.24 mm	0.6 in	18-DIP	1.95 V	0.56 in	14.22 mm	Red	85 mcd	75 mw	7-Segment	25 mm	19.05 mm	0.75 in	6.8 mm	0.268 in	0.984 in	Common Cathode	20 mA	2	645 nm
Kingbright DC56-11CGKWA	15.24 mm	0.6 in	18-DIP	2.1 V	0.56 in	14.22 mm	Green	35 mcd	75 mw	7-Segment	25 mm	19.05 mm	0.75 in	6.8 mm	0.268 in	0.984 in	Common Cathode	20 mA	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.33
		20	$ 2.35
		100	$ 1.93
		500	$ 1.62
		1000	$ 1.49
		2000	$ 1.43
		5000	$ 1.40
Newark	Each	100	$ 2.31
		500	$ 1.94
		1000	$ 1.91

Description

General part information

DC56-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Cathode 2.2V 20mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
