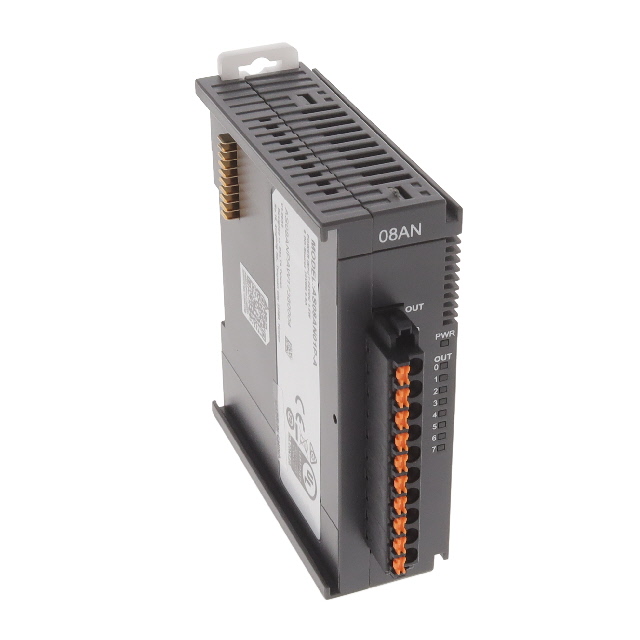

AS08AN01P-A

Active

Delta Electronics/Industrial Automation

OUTPUT MODULE 8 SOL ST 5-30V

Search across all available documentation for this part.

Active

Delta Electronics/Industrial Automation

OUTPUT MODULE 8 SOL ST 5-30V

Technical Specifications

Parameters and characteristics for this part

Specification	AS08AN01P-A

Approval Agency	UL, CE
For Use With/Related Products	AS Series
Mounting Type	Chassis Mount, DIN Rail
Number of Outputs and Type [custom]	8
Number of Outputs and Type [custom]	Solid State
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Termination Style	Pluggable Screw Terminal
Type	Output Module
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	5 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Approval Agency	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Termination Style	Type
Delta Electronics/Industrial Automation AS08AN01P-A	Chassis Mount DIN Rail	-20 C	60 °C	8	Solid State	CE UL	5 V	30 VDC	AS Series	Pluggable Screw Terminal	Output Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Output Module Chassis Mount, DIN Rail 5 ~ 30VDC
