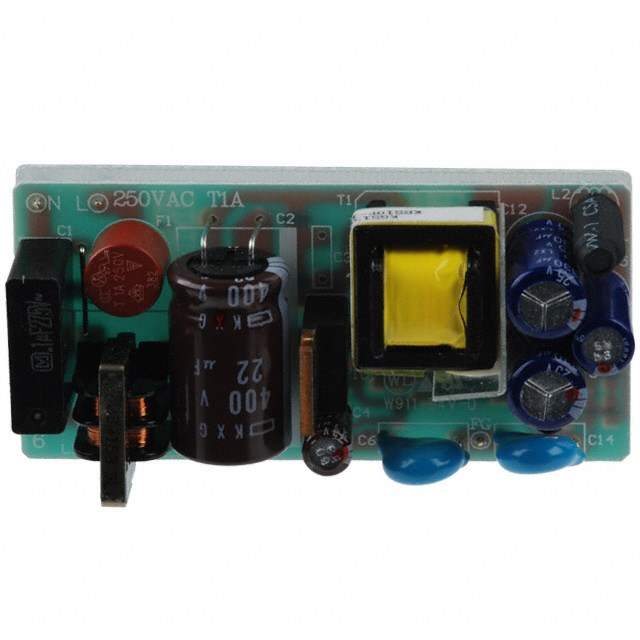

KRS10F-15
ActiveVolgen + Furuno
AC/DC CONVERTER 15V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRS10F-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UL, CSA, cUL |
| Current - Output (Max) [Max] | 650 mA |
| Efficiency | 81 % |
| Features | Universal Input |
| Load Regulation | 50 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 10 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2.56 in |
| Size / Dimension [x] | 65 mm |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [z] | 16.5 mm |
| Size / Dimension [z] | 0.65 in |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 20.99 | |
Description
General part information
KRS10F Series
Open Frame AC DC Converters 1 Output 15V 650mA 85 ~ 264 VAC Input
