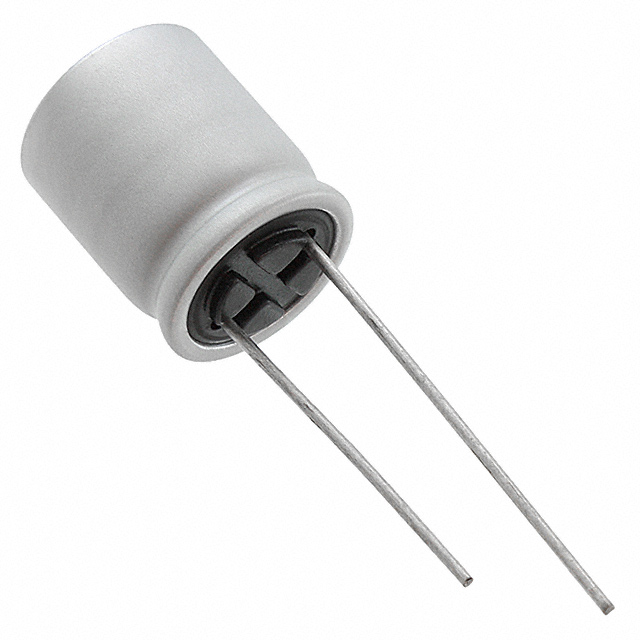

CAP ALUM POLY 560UF 20% 10V TH

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 560UF 20% 10V TH

Technical Specifications

Parameters and characteristics for this part

Specification	10SEP560M+T

Applications	General Purpose
Capacitance	560 µF
ESR (Equivalent Series Resistance)	13 mOhms
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	5.23 A
Ripple Current @ Low Frequency	261.5 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

Part	Lead Spacing	Lead Spacing	Type	Tolerance	Mounting Type	Ripple Current @ High Frequency	Voltage - Rated	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 10SEP560M	5 mm	0.197 in	Polymer	20 %	Through Hole	5.23 A	10 V	13 mOhms	105 ░C	-55 °C	General Purpose	13 mm	0.512 "	Radial Can	261.5 mA	3000 Hrs	10 mm	0.394 in	560 µF
Panasonic Industrial Automation Sales 10SEP270M	5 mm	0.197 in	Polymer	20 %	Through Hole	3.7 A	10 V	25 mOhm	105 ░C	-55 °C	General Purpose	8 mm	0.315 in	Radial Can	185 mA	3000 Hrs	10 mm	0.394 in	270 µF
Panasonic Industrial Automation Sales 10SEP120M+TSS	3.5 mm	0.138 in	Polymer	20 %	Through Hole	2.56 A	10 V	35 mOhms	105 ░C	-55 °C	General Purpose			Radial Can	128 mA	3000 Hrs	8 mm	0.315 "	120 µF	7 mm	0.276 "
Panasonic Industrial Automation Sales 10SEP560M+T	5 mm	0.197 in	Polymer	20 %	Through Hole	5.23 A	10 V	13 mOhms	105 ░C	-55 °C	General Purpose	13 mm	0.512 "	Radial Can	261.5 mA	3000 Hrs	10 mm	0.394 in	560 µF
Panasonic Industrial Automation Sales 10SEP56M	2.5 mm	0.098 in	Polymer	20 %	Through Hole	1.7 A	10 V	45 mOhm	105 ░C	-55 °C	General Purpose			Radial Can	85 mA	3000 Hrs	6.3 mm	0.248 in	56 µF	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

560 µF 10 V Aluminum - Polymer Capacitors Radial, Can 13mOhm 3000 Hrs @ 105°C
