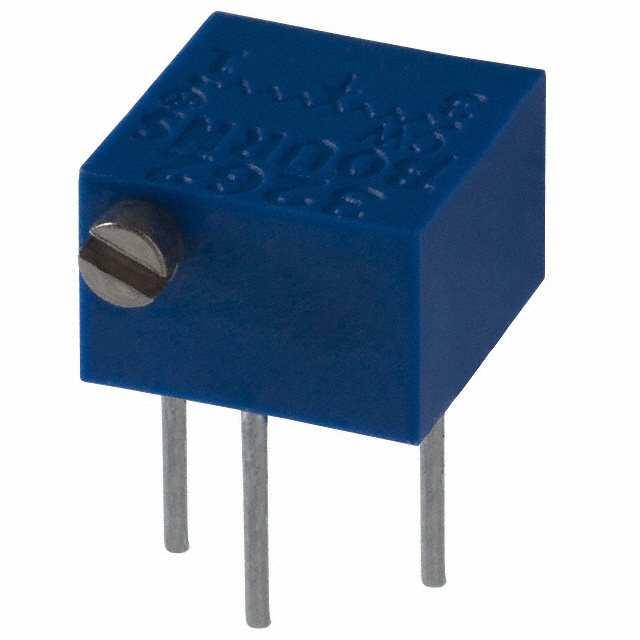

3262P-1-204LF

Active

Bourns Inc.

RES,CERMET,200KOHMS,300WVDC,10+/-% TOL,-100,100PPM-TC,2517-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3262P-1-204LF

Active

Bourns Inc.

RES,CERMET,200KOHMS,300WVDC,10+/-% TOL,-100,100PPM-TC,2517-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3262P-1-204LF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	200000 Ohms
Resistive Material	Cermet
Size / Dimension [x]	0.25 "
Size / Dimension [x]	6.35 mm
Size / Dimension [y]	4.7 mm
Size / Dimension [y]	0.185 in
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3262P Series

Part	Adjustment Type	Power (Watts)	Power (Watts)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistive Material	Temperature Coefficient	Mounting Type	Number of Turns	Termination Style	Resistance
Bourns Inc. 3262P-1-504LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins
Bourns Inc. 3262P-1-202	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	2 kOhms
Bourns Inc. 3262P-1-200	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	20 Ohms
Bourns Inc. 3262P-1-204LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	200000 Ohms
Bourns Inc. 3262P-1-105LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	1 MOhms
Bourns Inc. 3262P-1-253LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	25 kOhms
Bourns Inc. 3262P-1-100	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	10 Ohms
Bourns Inc. 3262P-1-200LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	20 Ohms
Bourns Inc. 3262P-1-101LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	100 Ohms
Bourns Inc. 3262P-1-201LF	Side Adjustment	0.25 W	250 mW	10 %	0.25 "	4.7 mm	0.185 in	6.35 mm	Cermet	100 ppm/°C	Through Hole	12	PC Pins	200 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 9.45
Newark	Each	100	$ 7.60
		250	$ 7.34
		500	$ 6.82

Description

General part information

3262P Series

200 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
