AL6Q-M100

Active

IDEC

OPERATOR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEC

OPERATOR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AL6Q-M100

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	SPDT
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

Part	Mounting Type	Actuator Marking	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Mechanical Life	Actuator Type	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Type	Electrical Life	Panel Cutout Dimensions [diameter]
IDEC AL6Q-M100	Panel Mount Front	No Marking	0.11 in	Quick Connect Solder	2.8 mm	120 V	24 V	1000000 Cycles	Square Button (Not Included)	On-Mom	SPDT	55 °C	-25 °C	Illuminated Standard	100000 Cycles	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

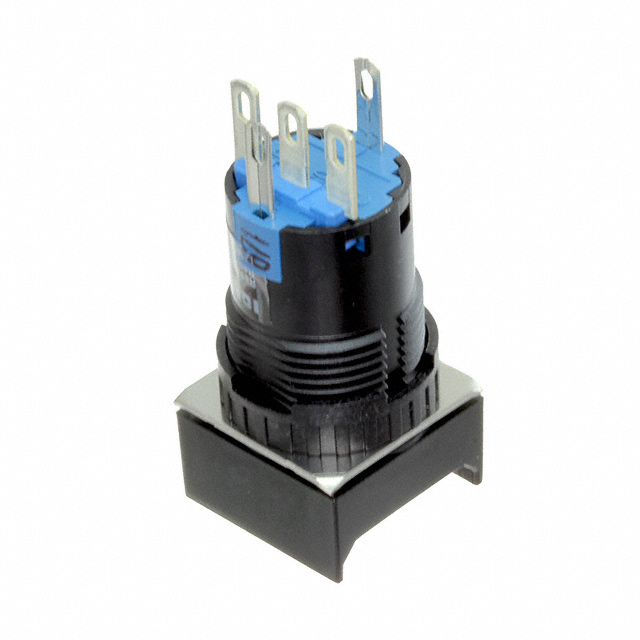

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
