L1I0-0850150000000
ActiveLumileds

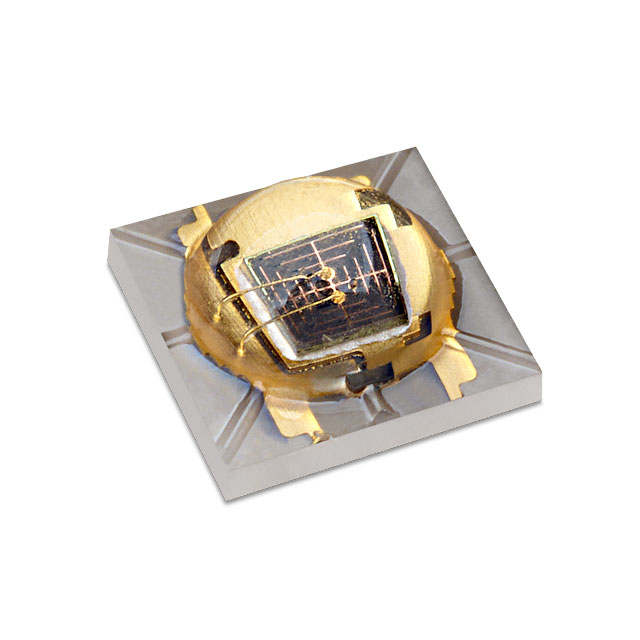

INFRARED EMITTER 850NM 335MW/SR CIRCULAR TOP MOUNT 2-PIN SMD EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
L1I0-0850150000000
ActiveLumileds
INFRARED EMITTER 850NM 335MW/SR CIRCULAR TOP MOUNT 2-PIN SMD EP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L1I0-0850150000000 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Orientation | Top View |
| Package / Case | 3-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 335 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength | 850 nm |
L1I0 Series
| Part | Wavelength | Current - DC Forward (If) (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Radiant Intensity (Ie) Min @ If [Min] | Mounting Type | Voltage - Forward (Vf) (Typ) | Grade | Viewing Angle | Type | Orientation | Qualification | Current - DC Forward (If) (Max) | Radiant Intensity (Ie) Min @ If | Viewing Angle [custom] | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumileds | 945 nm | 1.5 A | 3-SMD No Lead | 125 °C | -40 °C | 330 mW/sr | Surface Mount | 2.9 V | Automotive | 139 ° | Infrared (IR) | Top View | AEC-Q102 | ||||
Lumileds | 850 nm | 3-SMD No Lead | 85 °C | -30 °C | 335 mW/sr | Surface Mount | 3.2 V | 150 ° | Infrared (IR) | Top View | 1 A | ||||||
Lumileds | 850 nm | 1.5 A | 3-SMD No Lead | Surface Mount | 60 ° | Infrared (IR) | Top View | 1150 mW/sr | |||||||||
Lumileds | 945 nm | 1.5 A | 3-SMD No Lead | 125 °C | -40 °C | 740 mW/sr | Surface Mount | 2.9 V | Automotive | Infrared (IR) | Top View | AEC-Q102 | 90 ° | ||||
Lumileds | 850 nm | 1.5 A | 3-SMD No Lead | 335 mW/sr | Surface Mount | 150 ° | Infrared (IR) | Top View | |||||||||
Lumileds | 940 nm | 1.5 A | 3-SMD No Lead | Surface Mount | 150 ° | Infrared (IR) | Top View | 350 mW/sr | |||||||||
Lumileds | 940 nm | 1.5 A | 3-SMD No Lead | 125 °C | -40 °C | 320 mW/sr | Surface Mount | 2.9 V | Automotive | 145 ° | Infrared (IR) | Top View | AEC-Q102 | ||||
Lumileds | 850 nm | 3-SMD No Lead | 85 °C | -30 °C | Surface Mount | 3.2 V | 60 ° | Infrared (IR) | Top View | 1 A | 1150 mW/sr | ||||||
Lumileds | 945 nm | 1.5 A | 3-SMD No Lead | 125 °C | -40 °C | 1130 mW/sr | Surface Mount | 2.9 V | Automotive | 61 ° | Infrared (IR) | Top View | AEC-Q102 | ||||
Lumileds | 850 nm | 1.5 A | 3-SMD No Lead | 750 mW/sr | Surface Mount | Infrared (IR) | Top View | 90 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| 10 | $ 2.48 | |||
| 100 | $ 2.04 | |||
| 500 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 3.51 | ||
| 10 | $ 2.48 | |||
| 100 | $ 2.04 | |||
| 500 | $ 1.72 | |||
| Tape & Reel (TR) | 1000 | $ 1.57 | ||
| 2000 | $ 1.51 | |||
| 5000 | $ 1.48 | |||
Description
General part information
L1I0 Series
Infrared (IR) Emitter 850nm 3.2V 1A 335mW/sr @ 1A (Typ) 150° 3-SMD, No Lead
