142M2X19010

Active

METZ CONNECT USA Inc.

CBL CIRC

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CBL CIRC

Technical Specifications

Parameters and characteristics for this part

Specification	142M2X19010

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	X
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	X
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Green
Ingress Protection	IP67, IP65
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

Part	1st Connector Shell Size - Insert	1st Connector Type	Usage	2nd Connector Number of Positions Loaded	Shielding	Length [x]	Length [x]	Cable Type	1st Connector Gender	Assembly Configuration	2nd Connector Shell Size - Insert	1st Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Orientation	2nd Connector Mounting Type	Ingress Protection	2nd Connector Type	1st Connector Number of Positions	Cable Material	Color	2nd Connector Number of Positions	1st Connector Orientation
METZ CONNECT USA Inc. 142M2X19010	M12	Receptacle Right Angle	Industrial Environments	All	Shielded	1 m	3.28 ft	Round	Male Pins	Standard	M12	All	Free Hanging (In-Line)	X	Free Hanging (In-Line)	IP65 IP67	Receptacle	8 positions	Polyurethane (PUR)	Green	8	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.76

General part information

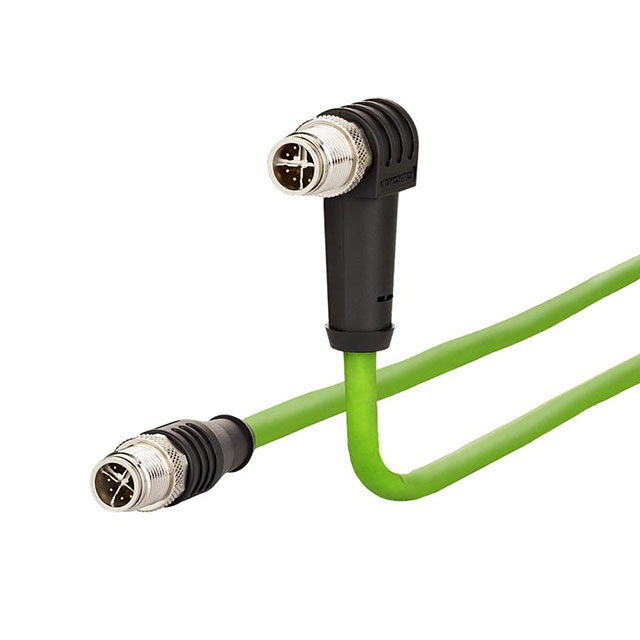

Circular Cable Assembly Shielded 3.28' (1.00m)
