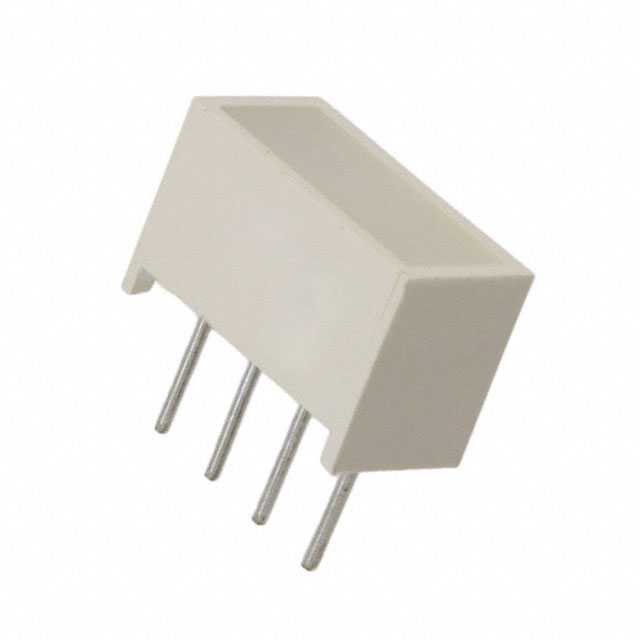

KB-A100SRW

Obsolete

Kingbright

LED LGT BAR 8.89X3.81MM RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KB-A100SRW

Obsolete

Kingbright

LED LGT BAR 8.89X3.81MM RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KB-A100SRW

Color	Red
Configuration	DIP, Bar - Single
Current	30 mA
Lens Size [x]	8.89 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	100 mcd
Mounting Type	Through Hole
Voltage Rating	1.85 V
Wavelength - Peak	660 nm

KB-A100 Series

Part	Lens Style	Color	Lens Type	Wavelength - Peak	Mounting Type	Lens Size [x]	Lens Size [y]	Millicandela Rating	Voltage Rating	Configuration	Current
Kingbright KB-A100SRW	Rectangle with Flat Top	Red	Diffused White	660 nm	Through Hole	8.89 mm	3.81 mm	100 mcd	1.85 V	Bar - Single DIP	30 mA
Kingbright KB-A100SURKW	Rectangle with Flat Top	Red	Diffused White	645 nm	Through Hole	8.89 mm	3.81 mm	75 mcd	1.95 V	Bar - Single DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

KB-A100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red Diffused, White 1.85V 30mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole

Documents

Technical documentation and resources
