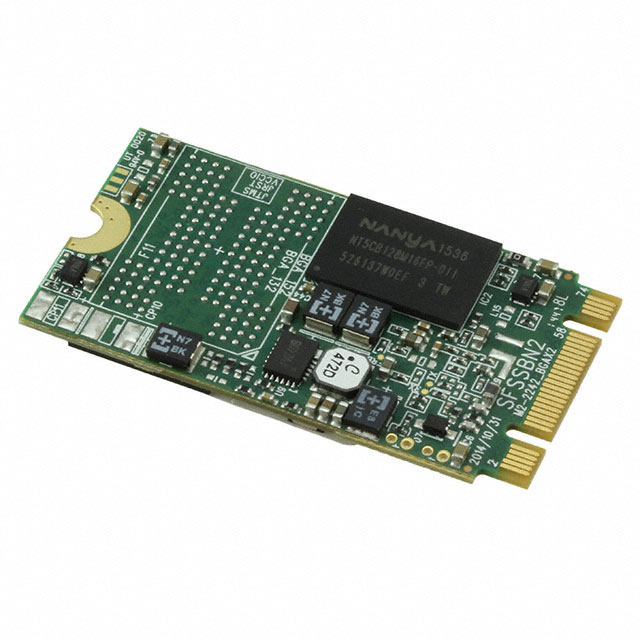

AF8GSSIA-VAAXP

Active

ATP Electronics, Inc.

SSD 8GB M.2 MODULE SLC SATA III

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 8GB M.2 MODULE SLC SATA III

Technical Specifications

Parameters and characteristics for this part

Specification	AF8GSSIA-VAAXP

Form Factor	M.2 Module
Memory Size	8 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	42 mm
Size / Dimension [y]	22 mm
Size / Dimension [z]	3.5 mm
Speed - Read	530 MB/s
Speed - Write	400 MB/s
Type	SATA III

Part	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Memory Type	Speed	Speed	Form Factor	Speed - Write	Speed - Read	Form Factor	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
ATP Electronics, Inc. AF8GCFI-TACXP	SLC	85 °C	-40 °C	8 GB	CompactFlash®
ATP Electronics, Inc. AF8GSD3-WABIM	MLC	85 °C	-40 °C	8 GB	SDHC™	UHS Class 1	Class 10
ATP Electronics, Inc. AF8GSMEL-OEM		85 °C	0 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (MLC)			Slim-SATA
ATP Electronics, Inc. AF8GSSEI-OEM		85 °C	-40 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (SLC)			Disk-On-Module SATA DOM
ATP Electronics, Inc. AF8GSACD-OEM		70 °C	0 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (MLC)				180 MB/s	250 MB/s	2.5 in
ATP Electronics, Inc. AF8GUD3-WAAIX	MLC	85 °C	-40 °C	8 GB	microSDHC™	UHS Class 1	Class 10
ATP Electronics, Inc. AF8GSSIA-VAAXP		85 °C	-40 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (SLC)			M.2 Module	400 MB/s	530 MB/s		SATA III	22 mm	3.5 mm	42 mm
ATP Electronics, Inc. AF8GSSEL-VADXP		85 °C	-40 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (SLC)			Slim-SATA	430 MB/s	530 MB/s		SATA III	39 mm	4 mm	54 mm
ATP Electronics, Inc. AF8GUDI-WACXM	SLC	85 °C	-40 °C	8 GB	microSDHC™
ATP Electronics, Inc. AF8GSAHI-OEM		70 °C	0 °C	8 GB	Solid State Drive (SSD) FLASH - NAND (MLC)			mSATA	190 MB/s	250 MB/s			29.8 mm	3.7 mm	2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 127.08

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 8GB SATA III M.2 Module
