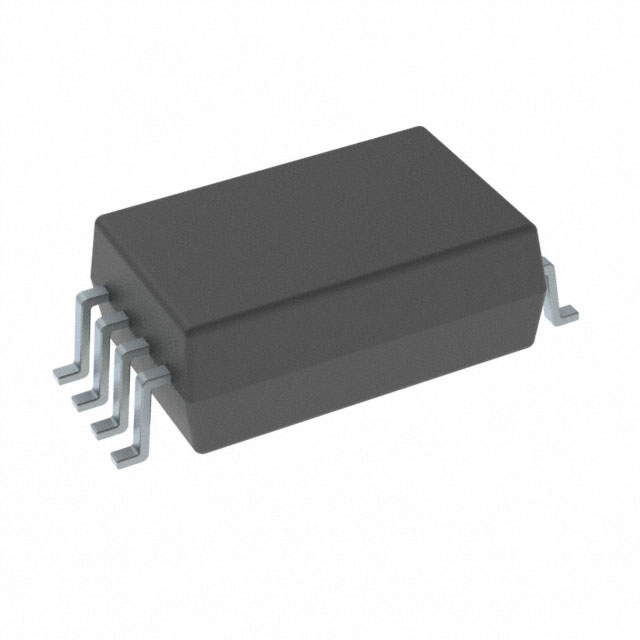

ACNU-4803-500E

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 8SO

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 8SO

Technical Specifications

Parameters and characteristics for this part

Specification	ACNU-4803-500E

Approval Agency	CSA, UL
Common Mode Transient Immunity (Min) [Min]	50 kV/çs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output High, Low [custom]	125 mA
Current - Output High, Low [custom]	125 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [x]	0.378 in
Package / Case [y]	9.6 mm
Propagation Delay tpLH / tpHL (Max) [custom]	150 ns
Propagation Delay tpLH / tpHL (Max) [custom]	120 ns
Pulse Width Distortion (Max) [Max]	90 ns
Rise / Fall Time (Typ) [custom]	6 ns
Rise / Fall Time (Typ) [custom]	6 ns
Supplier Device Package	8-SO Stretched
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	4.5 V

Part	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Technology	Pulse Width Distortion (Max) [Max]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - DC Forward (If) (Max) [Max]	Approval Agency	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Package / Case [x]	Package / Case [y]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package
Broadcom Limited ACNU-4803-500E	1	50 kV/çs	Optical Coupling	90 ns	30 V	4.5 V	125 mA	125 mA	20 mA	CSA UL	150 ns	120 ns	-40 °C	105 ░C	1.5 V	Surface Mount	8-SOIC	0.378 in	9.6 mm	6 ns	6 ns	8-SO Stretched
Broadcom Limited ACNU-4803-000E	1	50 kV/çs	Optical Coupling	90 ns	30 V	4.5 V	125 mA	125 mA	20 mA	CSA UL	150 ns	120 ns	-40 °C	105 ░C	1.5 V	Surface Mount	8-SOIC	0.378 in	9.6 mm	6 ns	6 ns	8-SO Stretched

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SO Stretched
