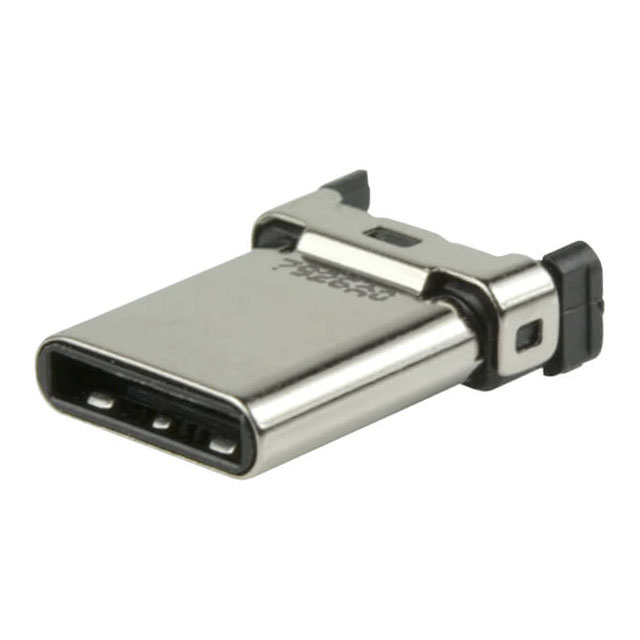

UP31-CV-G-CM
ActiveCUI Devices
CONN PLUG USB3.1 TYPEC BRD EDGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UP31-CV-G-CM
ActiveCUI Devices
CONN PLUG USB3.1 TYPEC BRD EDGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UP31-CV-G-CM |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 6.25 A, 5 A, 1.25 A, 0.25 A |
| Gender | Plug |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.69 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.41 | |||
| 40 | $ 1.38 | |||
| 80 | $ 1.32 | |||
| 230 | $ 1.19 | |||
| 440 | $ 1.10 | |||
| 1300 | $ 0.94 | |||
| 2600 | $ 0.88 | |||
Description
General part information
UP31-CV Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
