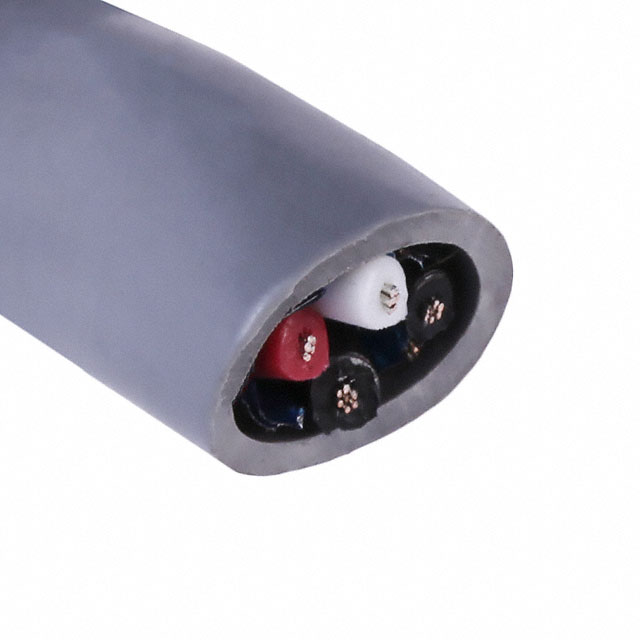

C0910A.41.10

Active

Prysmian Group

MULTI-PAIR 4CON 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 4CON 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C0910A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Low Capacitance
Jacket (Insulation) Diameter [diameter]	0.283 in
Jacket (Insulation) Diameter [diameter]	7.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Shield Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Cable Type	Wire Gauge	Features	Shield Type	Jacket (Insulation) Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Conductor Material	Length	Length
Prysmian Group C0910A.41.10	Polypropylene (PP)	Flexfoil®	4	1.194 mm	0.047 in	Gray	Multi-Pair	24 AWG	Low Capacitance	Foil	Poly-Vinyl Chloride (PVC)	Computer	0.283 in	7.19 mm	100 %	32 AWG	7	300 V	ASTM B-33	Copper Annealed Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
