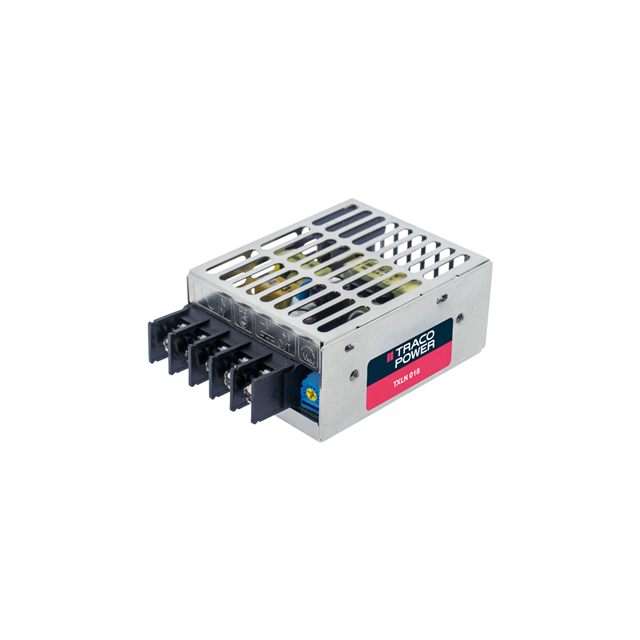

TXLN 018-105
ActiveTraco Power
AC/DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
TXLN 018-105
ActiveTraco Power
AC/DC CONVERTER 5V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TXLN 018-105 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 3 A |
| Efficiency | 78 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 2.44 in |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.1 in |
| Size / Dimension [z] | 28 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 375 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.04 | |
| 10 | $ 26.67 | |||
| 25 | $ 25.78 | |||
| 50 | $ 25.12 | |||
| 100 | $ 24.48 | |||
| 250 | $ 23.67 | |||
| 500 | $ 20.71 | |||
Description
General part information
TXLN 018 Series
Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 375 VDC Input
Documents
Technical documentation and resources
No documents available
