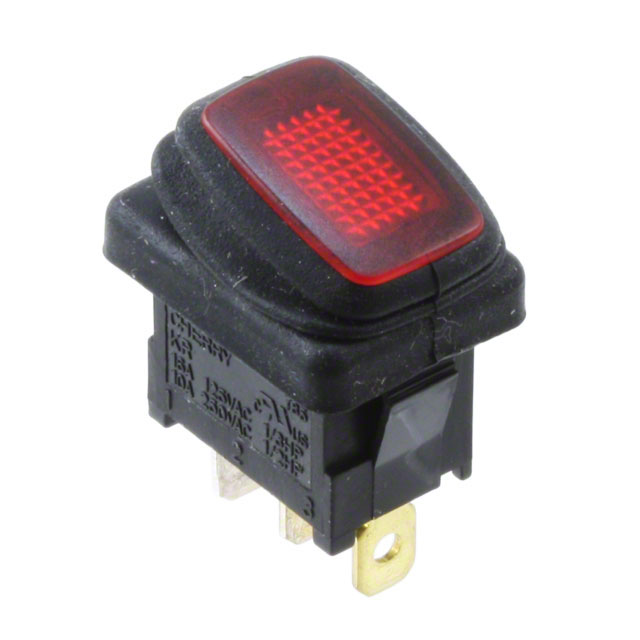

KRE2ALA2RBB
ActiveZF Electronics
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
KRE2ALA2RBB
ActiveZF Electronics
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRE2ALA2RBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A, 10 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, Neon |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.51 | |
| 10 | $ 3.03 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.73 | |||
| 100 | $ 2.61 | |||
| 320 | $ 2.43 | |||
| 640 | $ 2.32 | |||
| 1280 | $ 2.22 | |||
Description
General part information
KRE2ALA2 Series
Rocker Switch SPST 16A (AC), 10A (DC) 125 V Panel Mount, Snap-In
