33_SK-MMPX-50-1/199_NE
ActiveHuber+Suhner, Inc.

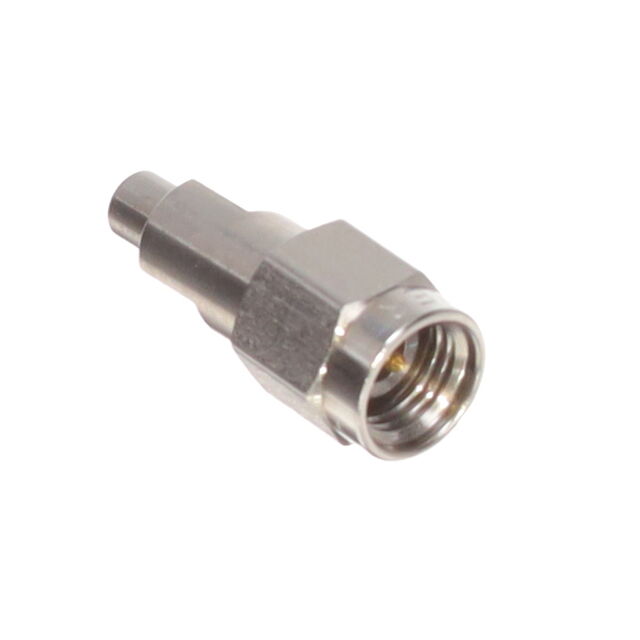

RF CONNECTOR ADAPTER, SK-MMPX, MALE-FEMALE, PLUG-JACK, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
33_SK-MMPX-50-1/199_NE
ActiveHuber+Suhner, Inc.
RF CONNECTOR ADAPTER, SK-MMPX, MALE-FEMALE, PLUG-JACK, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 33_SK-MMPX-50-1/199_NE |
|---|---|
| Adapter Series | MMPX to SK |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SK Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, MMPX Jack |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
33_SK-MMPX Series
Adapter Coaxial Connector SK Plug, Male Pin To MMPX Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
