PM324FBAOSP

Obsolete

Anderson Power Products, Inc.

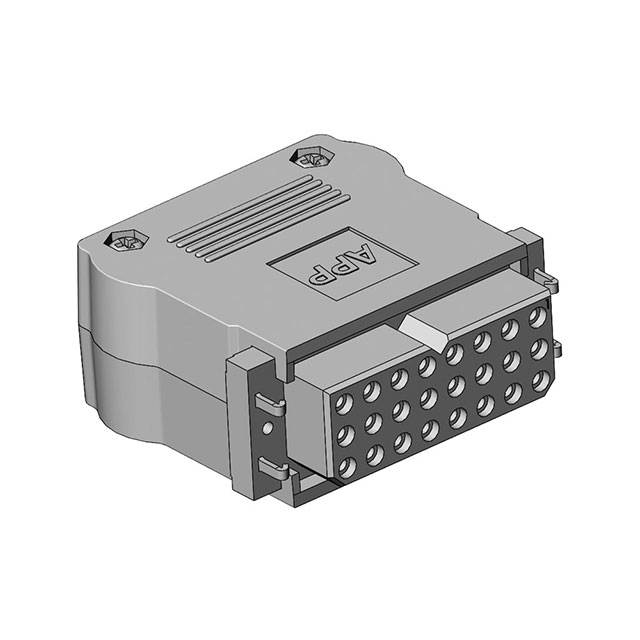

POWERMOD 3X24 FEMALE STRAIGHT PC

Search across all available documentation for this part.

Obsolete

Anderson Power Products, Inc.

POWERMOD 3X24 FEMALE STRAIGHT PC

Technical Specifications

Parameters and characteristics for this part

Specification	PM324FBAOSP

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket, Power
Current Rating (Amps)	30 A
Fastening Type	Push-Pull
Features	Mating Flange
Insulation Color	Black
Insulation Height	0.6 in
Insulation Height	15.24 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

Part	Number of Rows	Insulation Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Contact Shape	Voltage Rating	Style	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Material Flammability Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Material
Anderson Power Products, Inc. PM324FBAOSP	3	Polyphenylene Sulfide (PPS)	24	3 µin	0.076 µm	30 A	Through Hole	Circular	600 V	Board to Board Cable	Female Socket Power	200 µin	5.08 µm	Solder	-55 °C	180 °C	0.6 in	15.24 mm	All	Receptacle	UL94 V-0	Tin	0.15 in	3.81 mm	5 mm	0.197 in	Mating Flange	Gold	5 mm	0.197 "	Push-Pull	Black	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Receptacle Connector 0.197" (5.00mm) Through Hole Gold
