053,BK

Active

Serpac

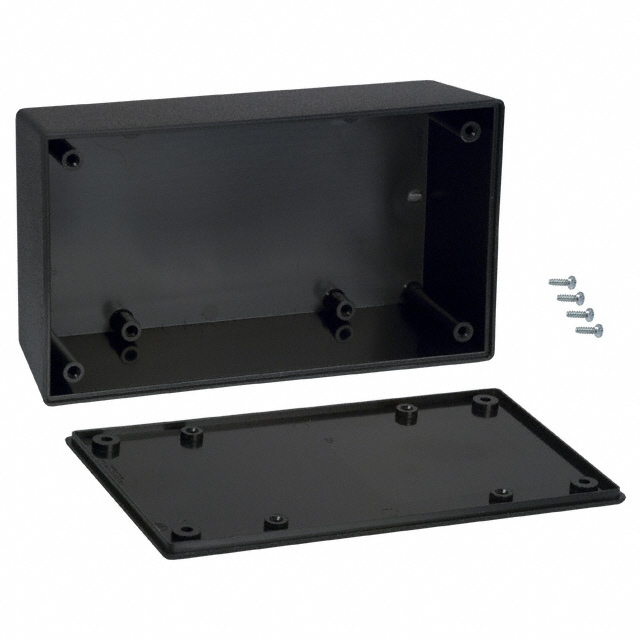

BOX ABS BLACK 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	053,BK

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Black
Container Type	Box
Features	PCB Supports
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.231 lb
Weight	104.78 g

Part	Container Type	Ratings	Color	Features	Material	Area (L x W)	Area (L x W)	Thickness	Thickness	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Height [z]	Height [z]
Serpac 053,AL	Box	IP40 NEMA 1	Almond	PCB Supports	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	3.25 "	142.75 mm	82.55 mm	5.62 in	0.231 lb	104.78 g	48.26 mm	1.9 in
Serpac 053,BK	Box	IP40 NEMA 1	Black	PCB Supports	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	3.25 "	142.75 mm	82.55 mm	5.62 in	0.231 lb	104.78 g	48.26 mm	1.9 in
Serpac 053,GY	Box	IP40 NEMA 1	Gray	PCB Supports	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	3.25 "	142.75 mm	82.55 mm	5.62 in	0.231 lb	104.78 g	48.26 mm	1.9 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.900" (48.26mm)
