Q-2001Q0003003M
ActiveAmphenol Custom Cable

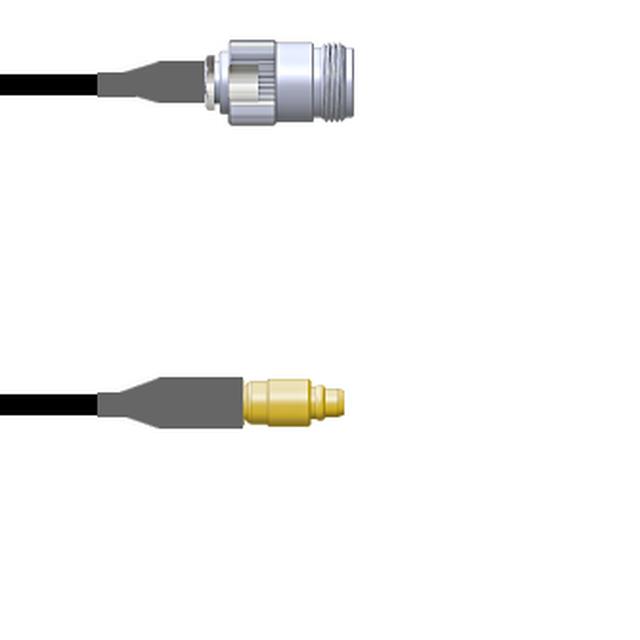

COAX CBL MMCX TO N-TYPE 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2001Q0003003M
ActiveAmphenol Custom Cable
COAX CBL MMCX TO N-TYPE 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2001Q0003003M |
|---|---|
| 1st Connector | MMCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | MMCX to N-Type |
Q-2001Q0 Series
| Part | Color | Frequency - Max [Max] | 1st Contact Gender | Overall Impedance | Style | 1st Connector Mounting Type | 2nd Contact Gender | Features | 2nd Connector | 1st Connector | Cable Type | Length | Length | Length | 2nd Connector Mounting Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 6.6 ft | 78.7 in | 2 m | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 9 " | 228.6 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Black | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-174 | 9.8 ' | 118.1 in | 3 m | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 4.9 ft | 59.1 in | 1.5 m | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | Free Hanging (In-Line) | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 9.8 ' | 118.1 in | 3 m | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 36 in | 91.44 cm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 12 " | 304.8 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 8.2 ' | 98.4 in | 2.5 m | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Copper | 6000 MHz | Male | 50 Ohms | MMCX to N-Type | Free Hanging (In-Line) | Female | Shielded | N-Type Jack | MMCX Plug | RG-316 | 24 " | 609.6 mm | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 71.20 | |
| 25 | $ 69.80 | |||
| 50 | $ 68.40 | |||
| 100 | $ 67.01 | |||
| 250 | $ 65.61 | |||
Description
General part information
Q-2001Q0 Series
Cable Assembly Coaxial MMCX to N-Type RG-174 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
