NJG1809ME7-TE1
ActiveNisshinbo Micro Devices Inc

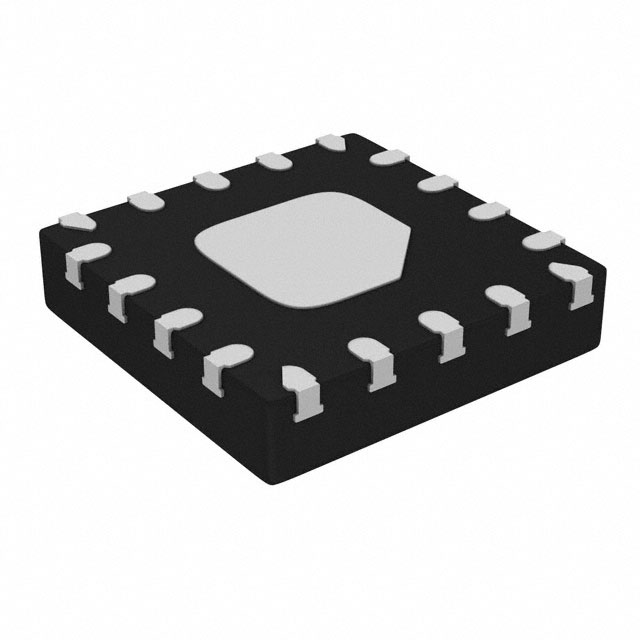

IC RF SWITCH SP4T 6GHZ 18EQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJG1809ME7-TE1
ActiveNisshinbo Micro Devices Inc
IC RF SWITCH SP4T 6GHZ 18EQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJG1809ME7-TE1 |
|---|---|
| Features | DC Blocked |
| Frequency Range | 6 GHz |
| IIP3 | 60 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 23 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-XFQFN Exposed Pad |
| RF Type | 802.11a/b/g/n/ac, LTE, WLAN |
| Supplier Device Package | 18-EQFN (2x2) |
| Test Frequency | 5.85 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.98 | |
| Cut Tape (CT) | 1 | $ 1.51 | ||
| 10 | $ 1.35 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.51 | ||
| 10 | $ 1.35 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
Description
General part information
NJG1809 Series
RF Switch IC 802.11a/b/g/n/ac, LTE, WLAN SP4T 50Ohm 18-EQFN (2x2)
