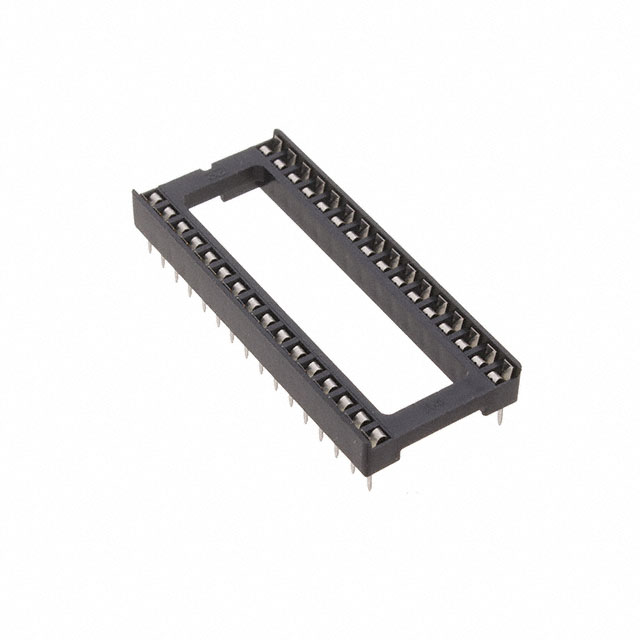

ICS-632-T

Active

Adam Tech

IC SOCKET, DIP, 32P 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

IC SOCKET, DIP, 32P 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	ICS-632-T

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2 x 16
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Material Flammability Rating	Contact Finish - Post	Type	Type	Type	Pitch - Post	Pitch - Post	Current Rating (Amps)	Contact Material - Post	Termination	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Resistance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Housing Material	Contact Material - Mating	Mounting Type
Adam Tech ICS-632-T	UL94 V-0	Tin	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	1 A	Phosphor Bronze	Solder	0.1 in	2.54 mm	2 x 16	32	20 mOhm	Open Frame	105 ░C	-55 °C	3.15 mm	0.124 in	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	Through Hole
