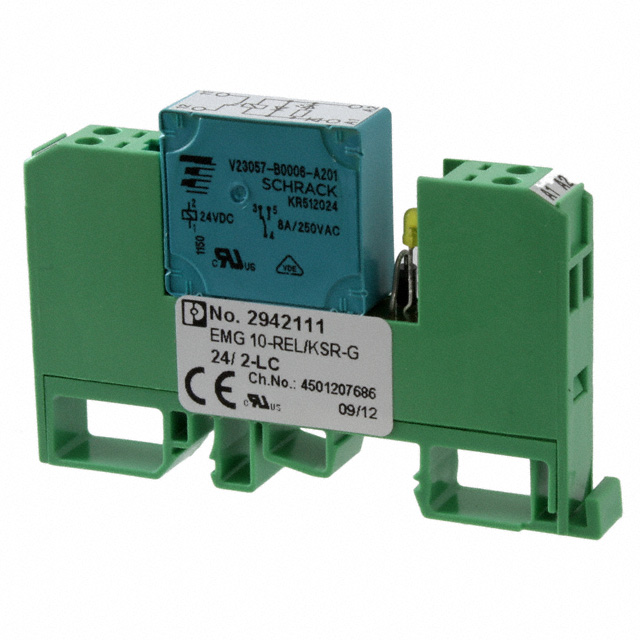

2942111

Active

Phoenix Contact

RELAY: INTERFACE; SPST-NO; UCOIL: 24VDC; 8A; 6A/250VAC; 6A/250VDC

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY: INTERFACE; SPST-NO; UCOIL: 24VDC; 8A; 6A/250VAC; 6A/250VDC

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Approval Agency	Mounting Type	Contact Form	Contact Rating (Current)	Load - Max Switching	Termination Style	Switching Voltage	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Features	Coil Current	Relay Type	Operate Time	Coil Resistance	Coil Type	Contact Material
Phoenix Contact 2942111	11 ms	cULus EAC UL	DIN Rail	SPST-NC (1 Form B)	6 A	140 W 1500 VA	Screw Terminal	250 VAC 250 VDC	24 VDC	-20 C	40 °C	Socket Included	21 mA	General Purpose	7 ms	1.14 kOhms	Non Latching	Silver Nickel (AgNi)
Phoenix Contact 2942807	11 ms	cULus EAC UL	DIN Rail	SPST-NO (1 Form A)	6 A	140 W 1500 VA	Screw Terminal	250 VAC 250 VDC	24 VDC	-20 C	40 °C	Diode Lighted Indicator Socket Included	21 mA	General Purpose	7 ms	1.14 kOhms	Non Latching	Silver Nickel (AgNi)
Phoenix Contact 2942108	11 ms	cULus EAC UL	DIN Rail	SPST-NO (1 Form A)	6 A	140 W 1500 VA	Screw Terminal	250 VAC 250 VDC	24 VDC	-20 C	40 °C	Socket Included	21 mA	General Purpose	7 ms	1.14 kOhms	Non Latching	Silver Nickel (AgNi)
Phoenix Contact 2942153	11 ms	cULus EAC UL	DIN Rail	SPDT (1 Form C)	6 A	140 W 1500 VA	Screw Terminal	250 VAC 250 VDC	24 VDC	-20 C	40 °C	Socket Included	21 mA	General Purpose	7 ms	1.14 kOhms	Non Latching	Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NC (1 Form B) 24VDC Coil DIN Rail
