1013863

Active

Phoenix Contact

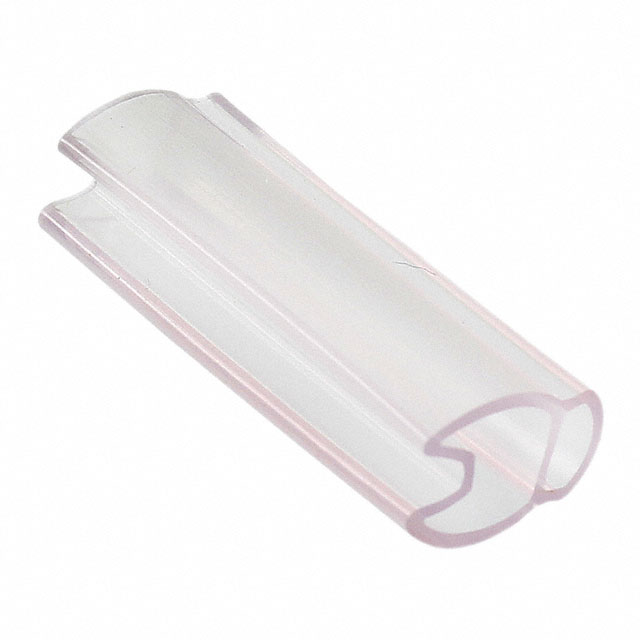

WIRE MARKER SLIP-ON 23X4MM TRANS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1013863

Active

Phoenix Contact

WIRE MARKER SLIP-ON 23X4MM TRANS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1013863

Cable Diameter [Max] [diameter]	7 mm
Cable Diameter [Max] [diameter]	0.276 in
Cable Diameter [Min] [diameter]	0.157 in
Cable Diameter [Min] [diameter]	4 mm
Color	Transparent
Legend	Blank
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-50 °C
Size [x]	23 mm
Size [x]	0.91 in
Size [y]	4 mm
Size [y]	0.16 in

PATG Series

Part	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Legend	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Size [x]	Size [y]	Size [y]	Size [x]	Cable Diameter [diameter]	Cable Diameter [diameter]
Phoenix Contact 1013740	0.024 in	1.2 mm	0.6 mm	0.047 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	15 mm	0.59 in	0.16 "
Phoenix Contact 1013847					Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	23 mm	4 mm	0.16 in	0.91 in	0.059 in 0.098 in	1.5 mm 2.5 mm
Phoenix Contact 0822466	0.157 in	7 mm	4 mm	0.276 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	30 mm	1.18 in	0.16 "
Phoenix Contact 0827076	0.024 in	1.2 mm	0.6 mm	0.047 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	12 mm	0.47 "	0.16 "
Phoenix Contact 0822453	0.079 in	4 mm	2 mm	0.157 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	30 mm	1.18 in	0.16 "
Phoenix Contact 1013818	0.079 in	4 mm	2 mm	0.157 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	10 mm	4 mm	0.39 "	0.16 "
Phoenix Contact 1013067					Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	15 mm	0.59 in	0.16 "	0.394 in 0.551 in	10 mm 14 mm
Phoenix Contact 1013054	0.236 in	10 mm	6 mm	0.394 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	4 mm	15 mm	0.59 in	0.16 "
Phoenix Contact 0808011	0.236 in	10 mm	6 mm	0.394 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	23 mm	4 mm	0.16 in	0.91 in
Phoenix Contact 1013863	0.157 in	7 mm	4 mm	0.276 in	Blank	Poly-Vinyl Chloride (PVC)	Transparent	-50 °C	80 C	23 mm	4 mm	0.16 in	0.91 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.38
		50	$ 0.36
		100	$ 0.35
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.29
		2500	$ 0.27
		5000	$ 0.26

Description

General part information

PATG Series

Wire Marker Carrier, Slip-On 0.91" W x 0.16" L (23.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)

Documents

Technical documentation and resources
