19432160292

LTB

HARTING Technology Group

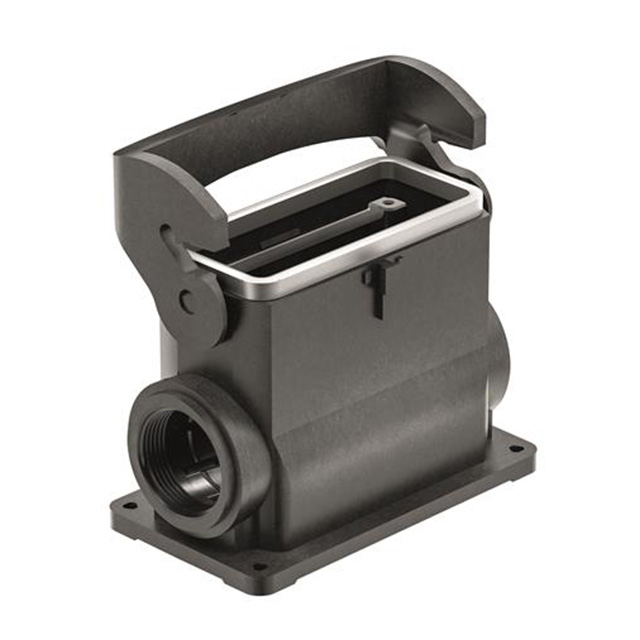

HAN-ECO 16B SURFACE MOUNT HOUSIN

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN-ECO 16B SURFACE MOUNT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Specification	19432160292

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	118 mm
Size / Dimension [x]	4.646 in
Size / Dimension [y]	2.559 in
Size / Dimension [y]	65 mm
Size / Dimension [z]	88 mm
Size / Dimension [z]	3.465 "
Style	Side Entry
Thread Size	M32

Part	Ingress Protection	Style	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size	Housing Color	Features	Thread Size	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19432160320	IP66	Bottom Entry	Base - Panel Mount	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Locking Clip (2) on Base Bottom	36.1 mm	1.421 "	114.5 mm	2.362 in	4.508 in	60 mm	16 B	Black
HARTING Technology Group 19432160292	IP66	Side Entry	Base - Box Mount	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Locking Clip (1) on Base Bottom		3.465 "	118 mm	2.559 in	4.646 in		16 B	Black	Feed Through	M32	88 mm	65 mm
HARTING Technology Group 19432160340	IP66	Bottom Entry	Base - Panel Mount	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Locking Clip (1) on Base Bottom	36.1 mm	1.421 "	114.5 mm	2.362 in	4.508 in	60 mm	16 B	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M32 16B IP66 - Dust Tight, Water Resistant
