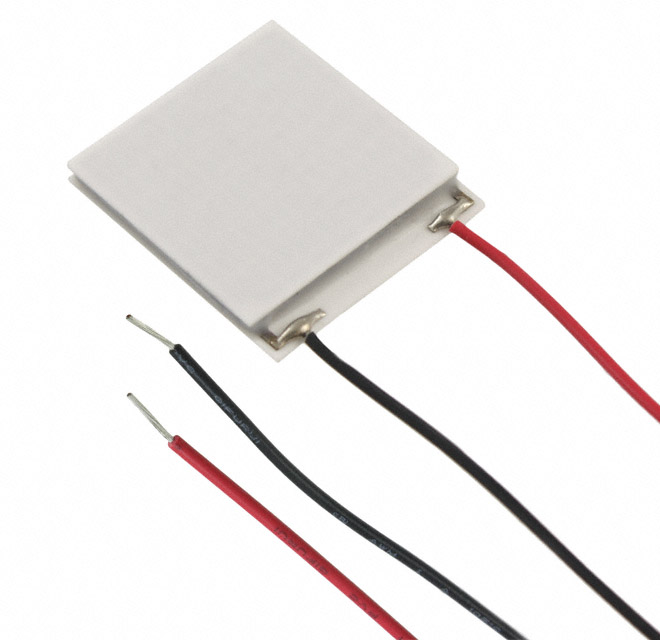

430026-507

Active

Laird Thermal Systems, Inc.

PELTIER MOD 34X30X3.2MM 4A

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD 34X30X3.2MM 4A

Technical Specifications

Parameters and characteristics for this part

Specification	430026-507

Current - Max [Max]	4 A
Delta Tmax @ Th	25 °C, 65 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.2 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	34.3 W
Resistance	3.36 Ohms
Size / Dimension [x]	34 mm
Size / Dimension [y]	30 mm
Voltage - Max [Max]	14.5 V

Part	Height [z]	Current - Max [Max]	Delta Tmax @ Th	Operating Temperature	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Resistance	Voltage - Max [Max]	Features	Qmax @ Th
Laird Thermal Systems, Inc. 430026-503	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Non-Sealed	34.3 W
Laird Thermal Systems, Inc. 430026-507	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Sealed - Silicone RTV	34.3 W
Laird Thermal Systems, Inc. 430026-508	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Sealed - Epoxy	34.3 W
