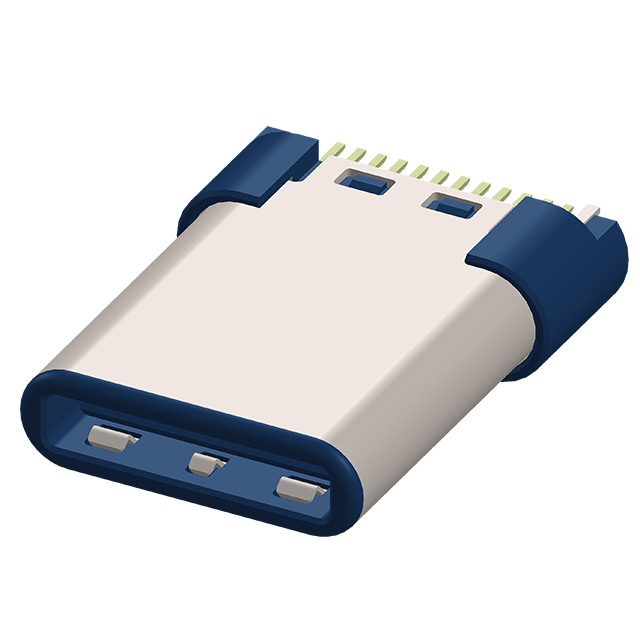

12401562E4#2A

Obsolete

Amphenol ICC (Commercial Products)

CONN PLUG USB3.1 TYPEC BRD EDGE

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

CONN PLUG USB3.1 TYPEC BRD EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	12401562E4#2A

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Straddle Mount
Number of Contacts	24
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Unshielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

Part	Contact Finish	Shell/Shielding Material	Shielding	Mounting Type	Specifications	Number of Contacts	Material Flammability Rating	Connector Type	Gender	Termination	Number of Ports	Insulation Color
Amphenol ICC (Commercial Products) 12401562E4#2A	Gold	Stainless Steel	Unshielded	Board Edge Straddle Mount	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	24	UL94 V-0	USB-C (USB TYPE-C)	Plug	Solder	1	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
